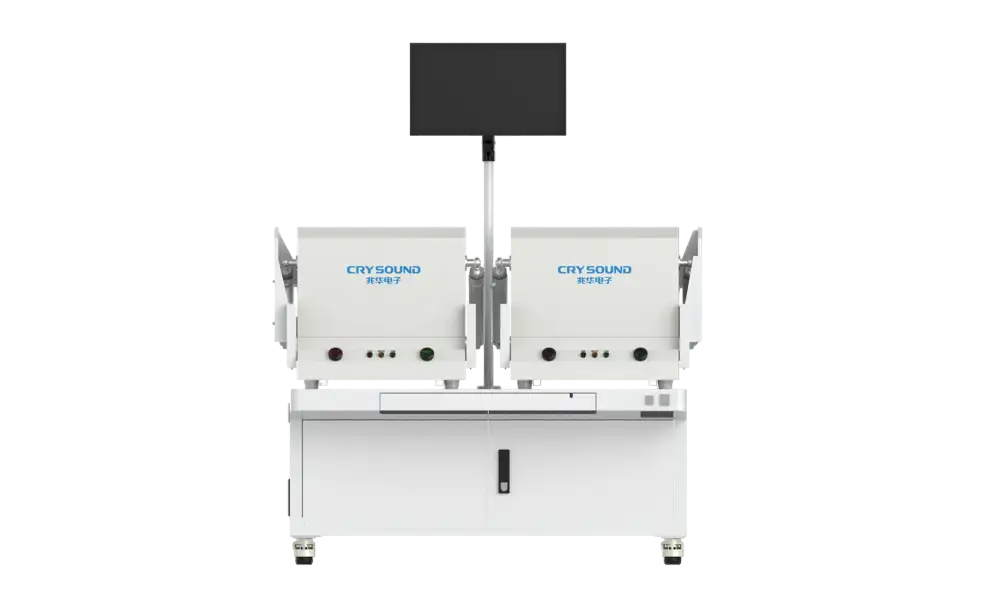

Smart Watch Audio Test System

Electroacoustic Test

Functional Testing and quality control for audio units supported

Vibration test supported

Self-developed software can be customized to access to MES system

Overview

The audio characteristics of the speaker and microphone play a crucial role in the performance of smart watches.It is necessary for the producers to test their products‘ audio characteristics.

Therefore, CRYSOUND provides a smart watch audio test system solution to ensure the quality of the products.

Features

Applicability‍

The solution ensure accurate and comprehensive testing, allowing evaluation of the audio and motor capabilities of smart watch.

Compatibility‍

The solution supports single-chamber parallel dual testing of smart watch speakers, microphones and motor vibration.

Customization‍

CRYSOUND can quickly customize fixture designs for different forms of products.

Explore More Use Cases

Test Items

SPK Test

Frequency response

Total harmonic distortion

Bub&Buzz

Signal-to-noise ratio

Phase

Balance

MIC Test

Frequency response

Total harmonic distortion

Rub & Buzz

Signal-to-noise ratio

Phase

MOTOR Test

Tightness

Core frequency

Vibration

System Devices

Edit Content

CRY6151B Electroacoustic Analyzer

CRY6151B is a robust and reliable electroacoustic analyzer with a frequency range spanning from 20Hz to 20kHz. It is designed to evaluate a diverse array of devices, including USB, Bluetooth®, and noise-canceling headphones; electret, MEMS, and moving-coil microphones; receivers; speakers; Bluetooth loudspeakers; and loudspeaker crossover devices.

Technicians can assess device performance using key metrics and procedures such as sensitivity (SPL), impedance, total harmonic distortion (THD), resonance frequency (F0), headphone balance, headphone positioning, phase, polarity, microphone current and voltage, signal-to-noise ratio (SNR), microphone directivity, speaker Thiele/Small (TS) parameters, and telephone loudness ratings. The CRY6151B offers comprehensive capabilities for thorough and precise evaluation of electroacoustic equipment.

Edit Content

CRY3602 Mouth Simulator with Built-In 20dB Amplifier

CRY3602 mouth simulator is a sound source used to simulate the sound field near the human mouth. It is widely used for testing acoustic parameters such as the frequency response and distortion of telephone transmitters and microphones.

‍CRY3602 mouth simulator has a built-in power amplifier. There is no need to purchase an additional power amplifier. It can be directly connected to a sound card or signal generator, simplifying the connection of the test system.

Edit Content

CRY433 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 0.5Hz to 8kHz

The CRY433 is a single-axis acceleration sensor designed for precision and versatility. It features a 10-32 UNF output mode on the top, allowing it to be securely mounted to objects using a 10-32 UNF bolt. This sensor is ideal for detecting small movements in laboratory and scientific research, as well as for real-time vibration monitoring of industrial equipment.

‍

The CRY433 can be fitted with armored shielded cables, enabling accurate measurement of vibration parameters such as acceleration, velocity, and displacement, even in environments with significant industrial or electrical interference

Edit Content

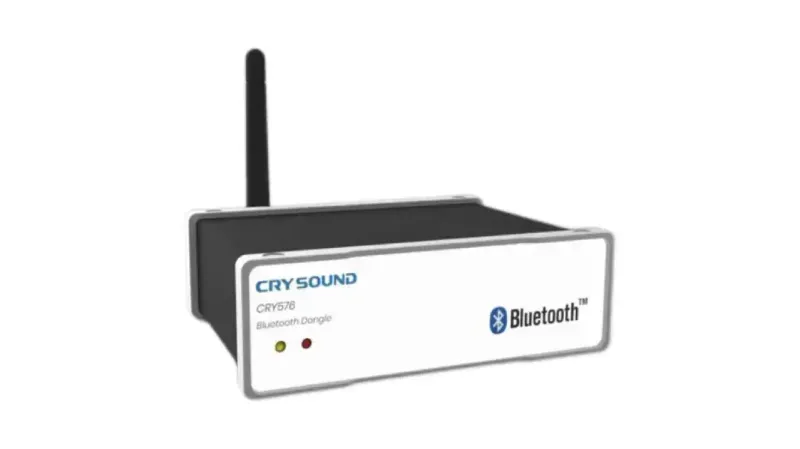

CRY576 Bluetooth® Dongle

CRY576 Bluetooth® Dongle is a Bluetooth device designed for Bluetooth audio and UI testing. The CRY576 is engineered for use in R&D laboratories and production lines. It is versatile, functioning seamlessly both with the CRY6151B electroacoustic tester and as a stand-alone module with other testing equipment. The CRY576 supports a range of Bluetooth solutions with high reliability and fast test speeds, connecting to most solutions in under 3 seconds. Users can operate the CRY576 via CRY6151B test software or its own stand-alone tool software to perform functions such as searching, pairing, connecting, playing audio, and recording.

Edit Content

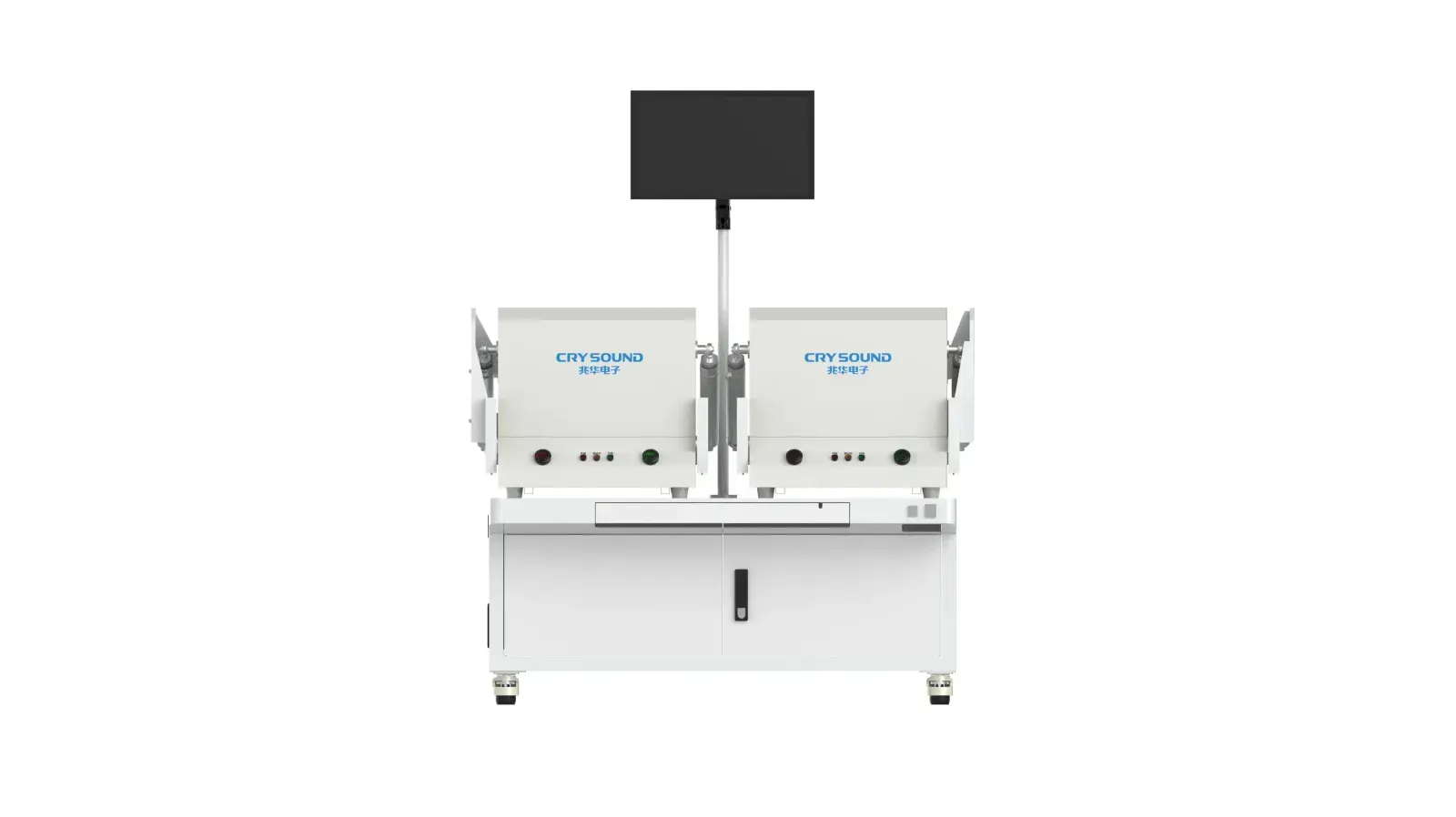

CRY723 Pneumatic Acoustic Test Chamber

The CRY723 is a shell-like, soundproof, and shielding test box that offers both cost-effectiveness and exceptional performance, making it ideal for testing smartphones and wireless wearable products.

By combining two CRY723 boxes with a CRY6151B, you can conduct comprehensive audio, ENC, and ANC measurements for TWS headphones. This setup allows one operator to manage two test stations simultaneously, reducing labor costs.

Edit Content

CRY3203-S01 Free-Field Microphone Set, 1/2", 50mV/Pa

CRY3203-S01 is a 1/2-inch free-field prepolarized measurement microphone and preamplifier set widely used in acoustic testing environments, such as anechoic chambers and quiet rooms.

‍The unique design of CRY3203-S01 allows it to have a frequency response range that matches the auditory frequency range of the human ear, making it highly suitable for noise detection. Additionally, it is also widely applicable in various fields including electroacoustic measurements, audio measurements, and acoustical research.

Edit Content

CRY3203-S02 Free-Field Microphone Set, 1/2", 50mV/Pa

CRY3203-S02 is a 1/2-inch free-field prepolarized measurement microphone and preamplifier set widely used in acoustic testing environments, such as anechoic chambers and quiet rooms.

‍The unique design of CRY3203-S02 allows it to have a frequency response range that matches the auditory frequency range of the human ear, making it highly suitable for noise detection. Additionally, it is also widely applicable in various fields including electroacoustic measurements, audio measurements, and acoustical research.
