QuickRadio, Radio Frequency Analysis Software
QuickRadio offers a robust platform for simultaneous testing of RF front-end interactions and validation across DC, digital, analog, and RF instruments.
Featuring proprietary algorithms, QuickRadio supports a range of pre-configured sequence templates that facilitate customized workflows for RF (Radio Frequency), charging case, and fixture control testing. Its innovative user interface is highly adaptable, allowing for seamless customization to meet the needs of different users within your organization. This ensures that both expert users and operator technicians can collaborate effectively, enhancing efficiency and productivity.

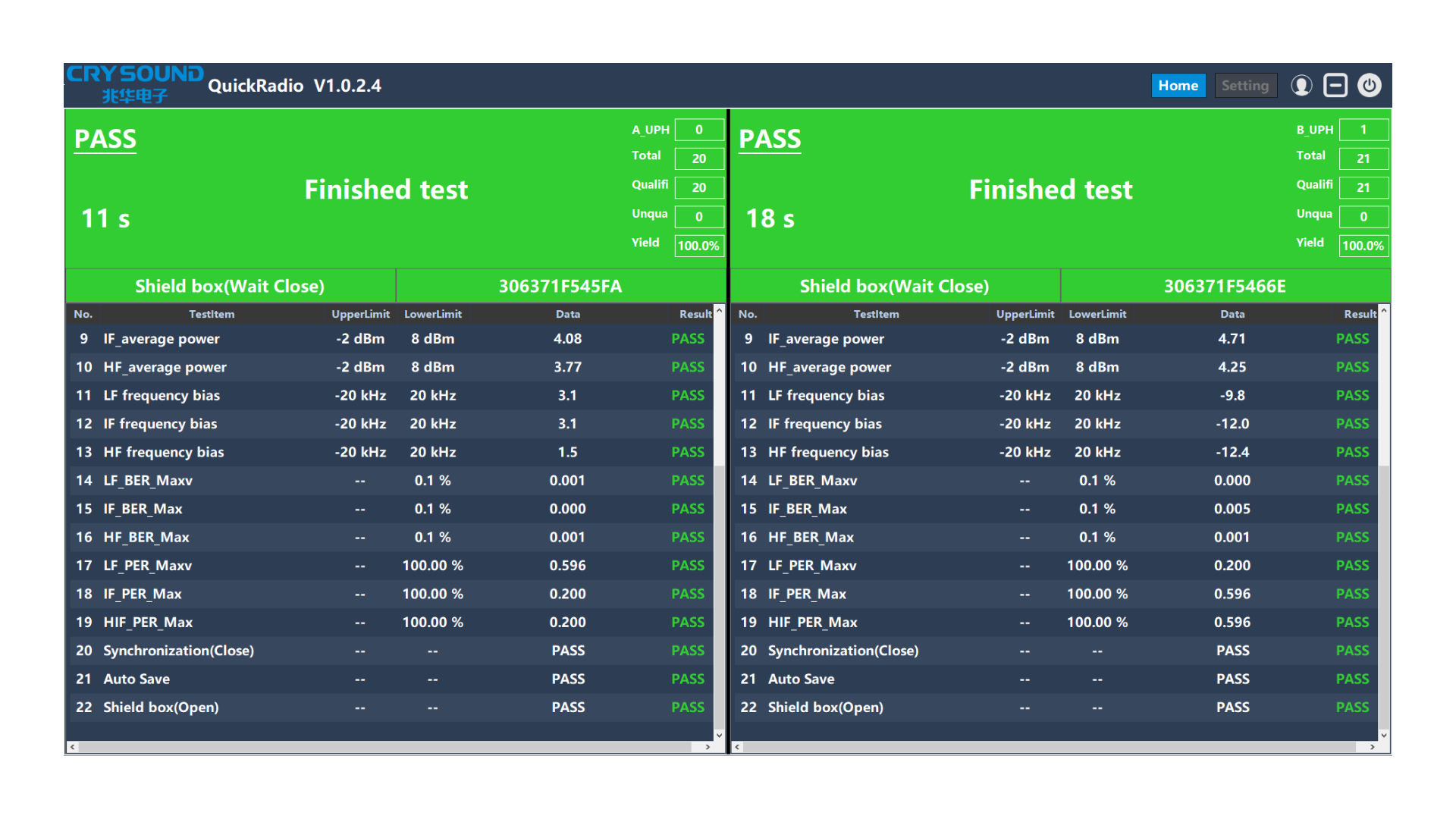

Test Mode
▶ Operator
Complete the test with one click and disable all the functions buttons except start test button to avoid wrong click.
▶ Administrator
Given authorization to edit sequences and access to external sequences. Recording including logs, WAV, screenshots etc., can be stored automatically.
Key Feature
▶ Industry-leading RF testing instruments including Anritsu MT8852B, Agilent N4010A, and R&S CMW500 Bluetooth comprehensive communication tester are supported.
▶ Auto-save configuration, test data for inquiry at any time.
▶ Integral squence editor with multiple languages supported and automatic matching of Chinese and English version of the the network analyzer system.
▶ Self-developed software can be customized to access to MES system.
Technical Specifications
Function Module
BR(Basic Rate)
TX power, Initial carrier frequency tolerance, Sensitivity-single slot packets, Modulation characteristic, Power control, Carrier frequency drift, Sensitivity-multi-slot packets, Maximum input level
EDR(Enhanced Data Rate)
Relative TX power, Differential phase modulation, BER floor performance, Carrier frequency stability and modulation accuracy, Sensitivity, Maximum input level
Power consumption(optional)
Current leakage, Charging current, Fully charged current, Power-on current, Shipping current
Programming(optional)
Firmware programming Calibration(optional) Frequency bias calibr
Calibration(optional)
Frequency bias calibration
