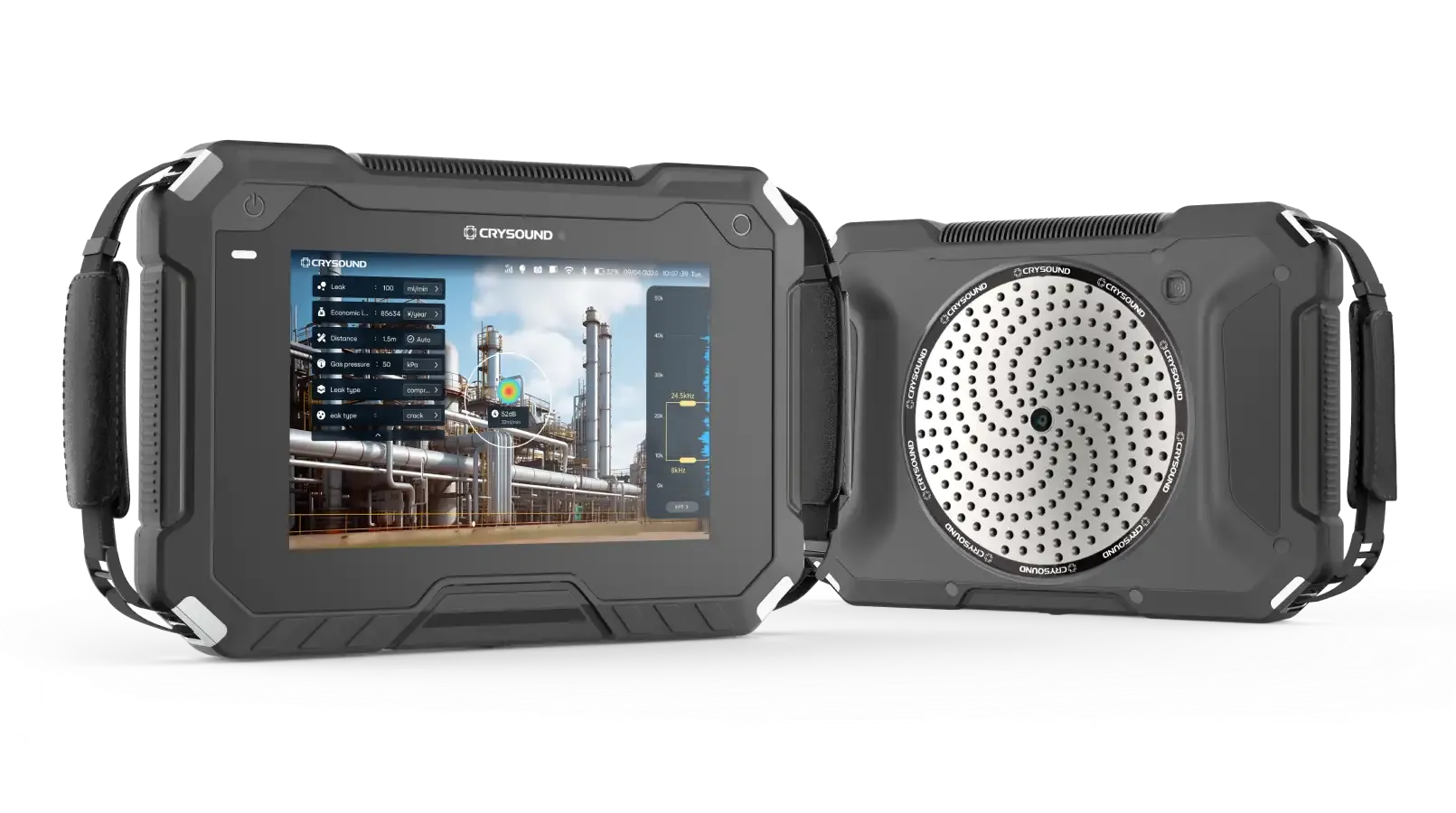

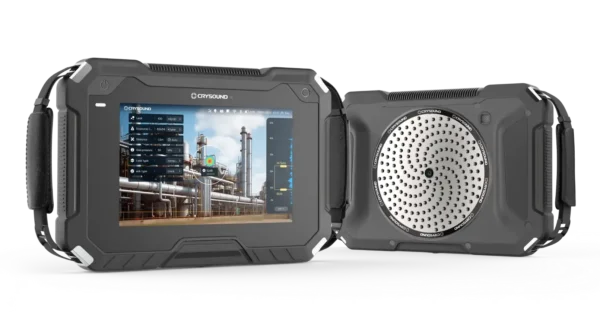

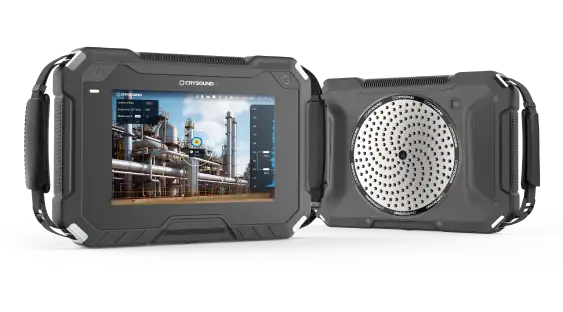

CRY8124 Advanced Acoustic Imaging Camera
Introducing CRYSOUND’s cutting-edge acoustic imaging camera, revolutionizing industrial inspections with advanced capabilities. The CRY8124 acoustic imaging camera excels at pinpointing leaks, identifying electrical partial discharge, and detecting mechanical deterioration. Setting a new standard for sensitivity and efficiency, the CRY8124 boasts 200 microphones (the most in the industry). The device detects smaller leaks and partial discharges from greater distance than any other handheld acoustic imaging camera on the market.
The CRY8124 reporting software allows offline analysis, editing, and report generation, simplifying regular maintenance routines.
Elevate the effectiveness of your industrial inspections with CRYSOUND’s acoustic cameras.
Far-field sound source localization and visualization
Leak detection and leak rate for all compressed gasses
Partial discharge detection and type recognition
Report generation for critical data sharing

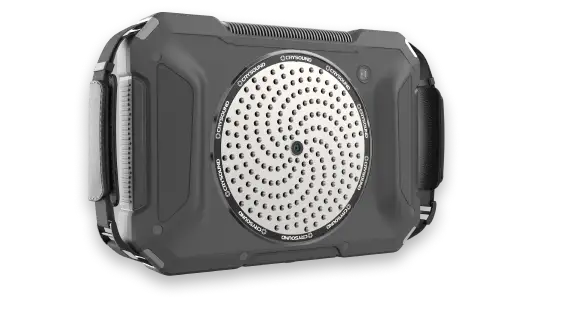

The Best Performance in the Industry
With 200 microphones, 100kHz bandwidth, and the fastest processor in the industry, the CRY8124 can pinpoint smaller leaks and partial discharges at a greater distance than any other system.
CRY8124 keeps operators at a much safer distance, avoiding exposure to toxic gases. Also, benefiting from the increased detection distance, the camera covers a wider area, improving test efficiency by more than 4x.
Detects leaks at twice the distance of 1st gen
Locates 2bar 0.003L/min leak at 10m distance
Doubles the Detectability of Sound Sources in Noisy Environments
In most field inspections, background noise is always the biggest concern that limits the performance of acoustic imaging cameras. With the CRY8124, we have introduced a new powerful algorithm, ‘HyperVision.’
HyperVision mitigates mutual interference between different sources. The signals of the target sound source are emphasized, and previously unrecognized sound sources are accurately identified and presented.

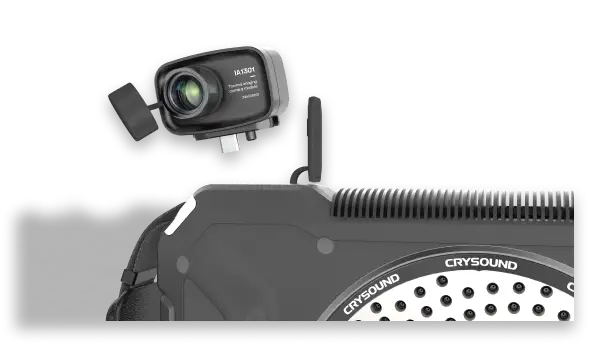

Thermal & Acoustic Imaging Display Simultaneously
Integrating infrared technology with an acoustic camera significantly boosts its capabilities and efficiency. This combination enables real-time, simultaneous visualization of both thermal and acoustic images, ensuring that no detail goes unnoticed. By eliminating the need for separate thermal and acoustic inspections, it streamlines workflows and enhances overall inspection efficiency. This integration is especially valuable in high-temperature scenarios, such as with steam traps, where precise temperature measurement aids in informed decision-making.
Resolutions of 640×512 and 384×288 available
Measurement range from -20 to 500℃

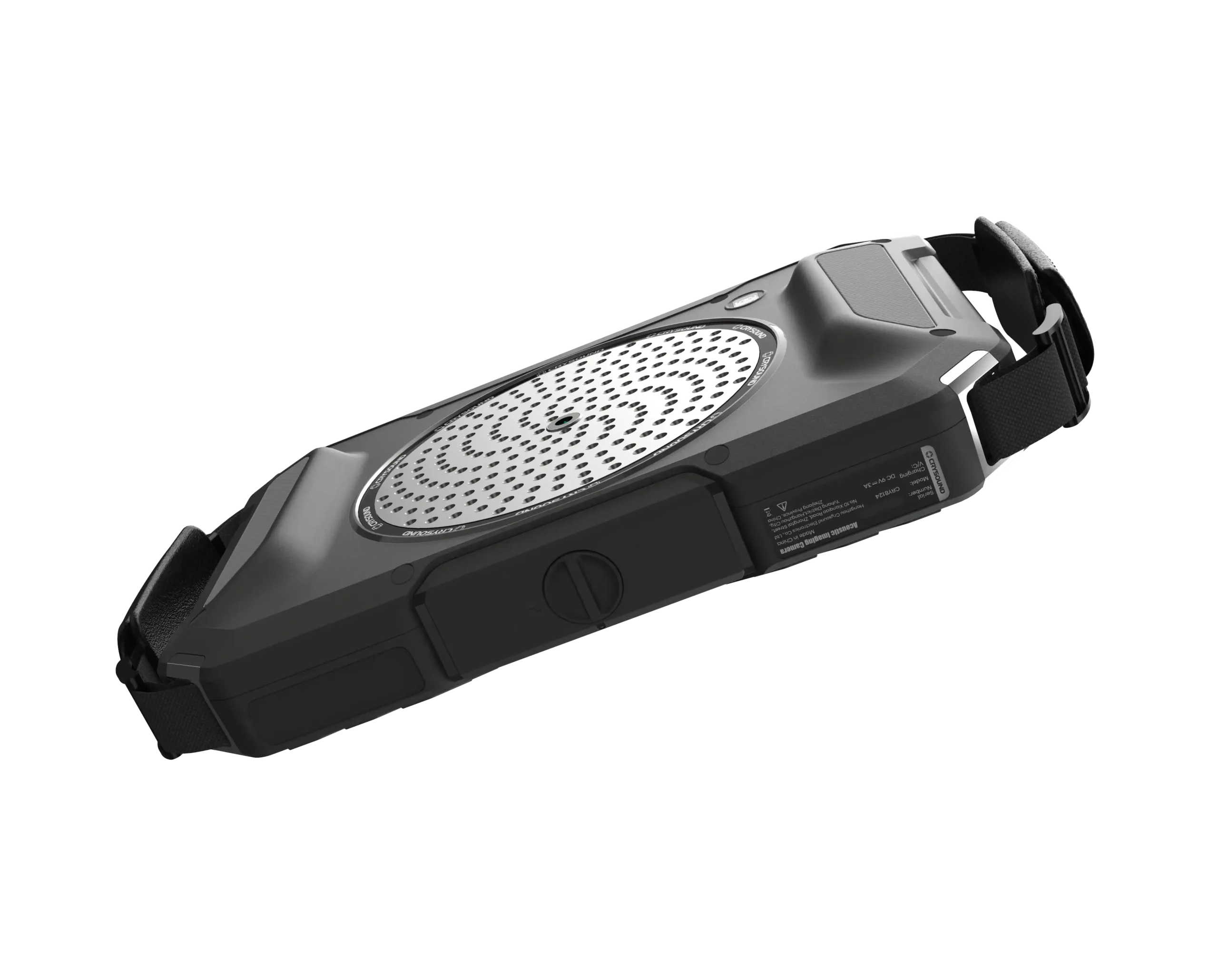

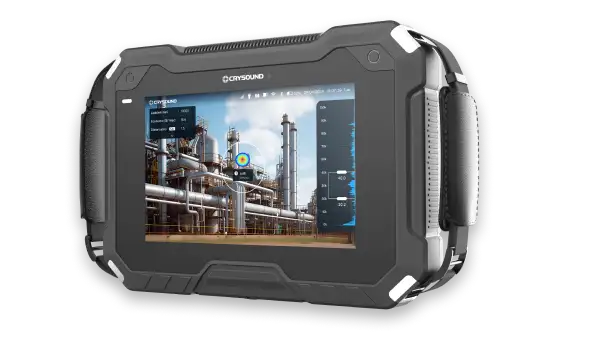

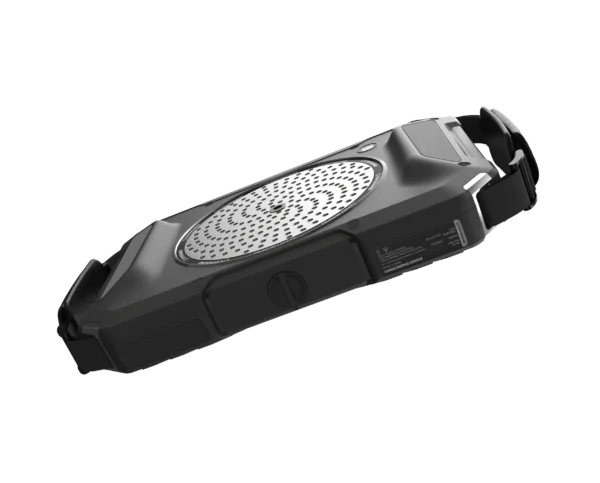

Ergonomic Design & Premium Display
Weighing just 3 lbs (1.4 kg), this device is encased in a high-quality soft rubber coating that provides an excellent tactile feel and ensures a secure grip. The ergonomically designed handle enables comfortable single-handed operation, enhancing user convenience and safety in various scenarios.
The display features a stunning 8-inch LCD screen with a resolution of 1920×1200, delivering sharp, detailed visuals. With a brightness of 600 nits, the screen remains easily readable even in direct sunlight, ensuring reliable performance across different lighting conditions.
Rubber molded and weight only 3 lbs (1.4kg)
1920x1200, 8-inch LCD Display

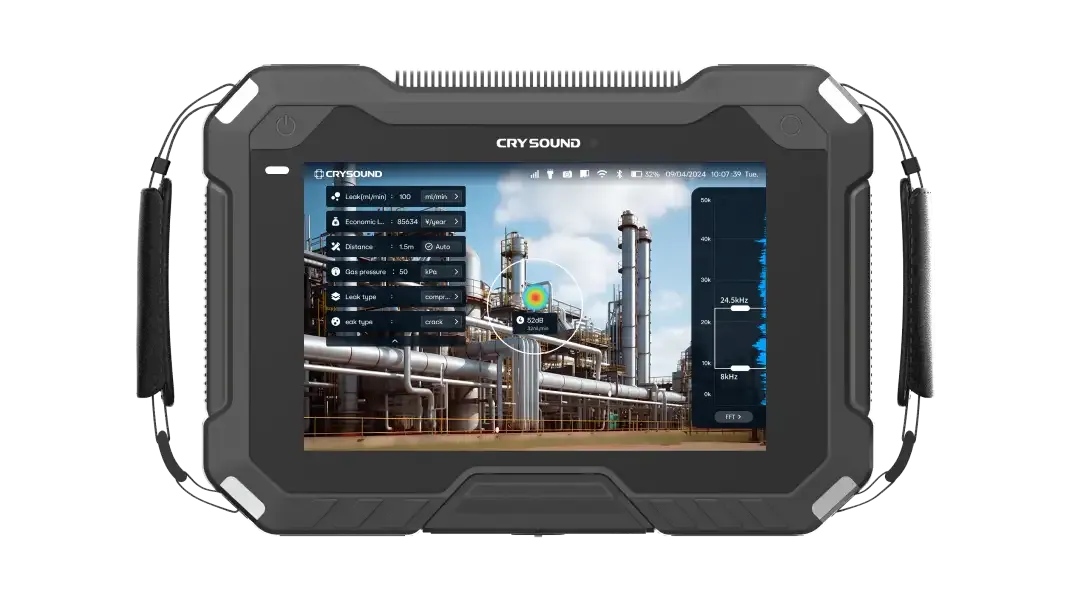

New Software for Leak Detection & Partial Discharge (PD)
The CRY8124 acoustic imaging camera boasts a fully revamped software interface that simplifies the detection of gas and vacuum leaks, partial discharge (PD) localization, and PD type identification. This user-friendly interface enables operators to swiftly and accurately identify the sources of leaks, minimizing downtime and boosting operational efficiency. Additionally, its advanced PD detection features provide precise localization and classification of partial discharge types, ensuring the reliability and performance of electrical assets.
Locates and quantifies gas/vacuum leaks
Pinpoints PD and recognizes the type of PD

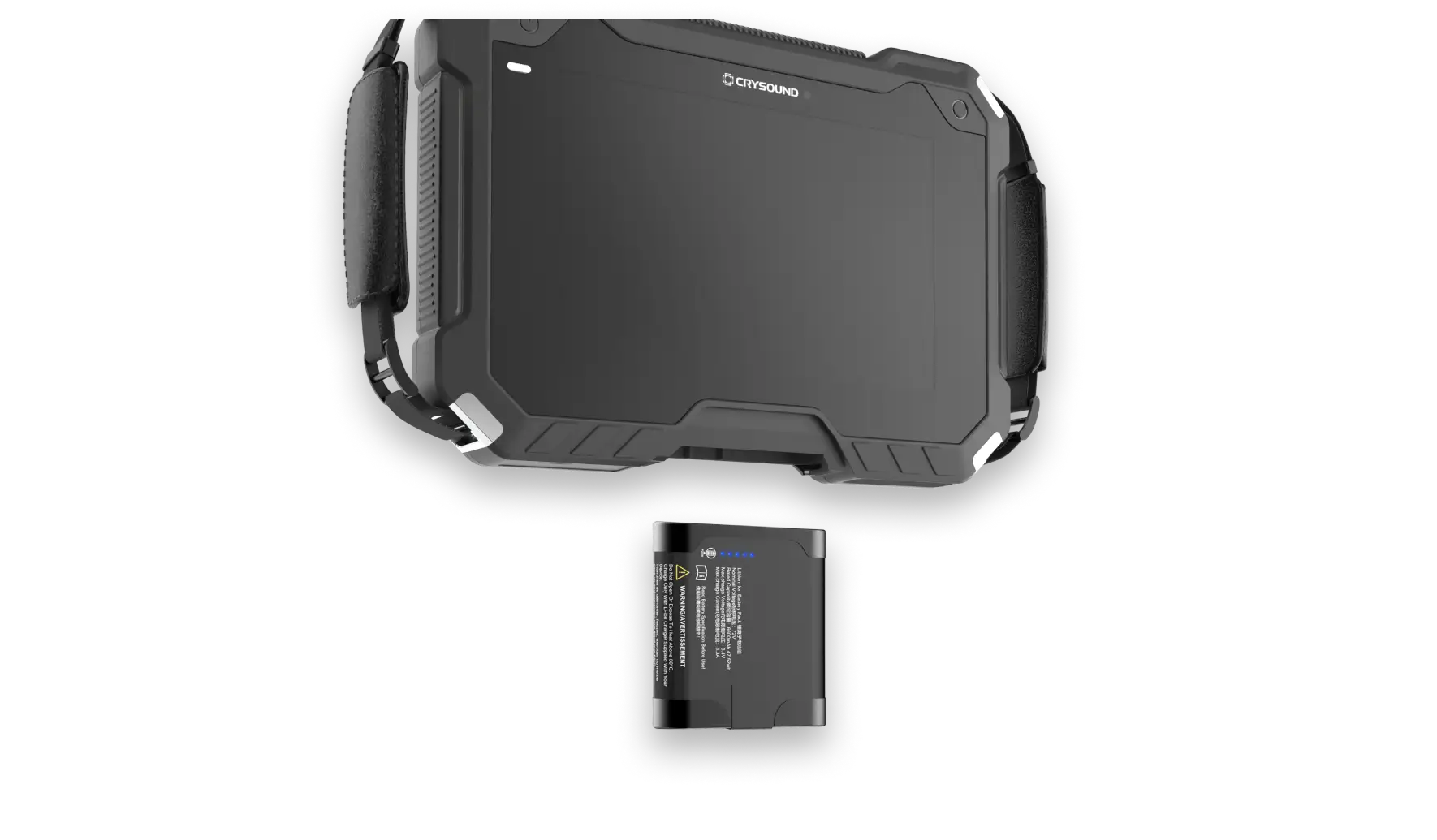

Up to 10 Hours of Operation with Replaceable Battery
The CRY8124 acoustic imaging camera comes with advanced smart replaceable batteries, enhancing convenience and extending operational time. Each battery provides up to 5 hours of continuous use, ensuring uninterrupted inspections.
With an extra spare battery included, the device supports a full day of testing. The standard package features two smart batteries and a smart battery charger for effortless battery management. LED indicators on each battery show the current charge level, allowing users to easily monitor battery status and plan their work efficiently.
Enhancing Efficiency with Bluetooth®& Wi-Fi Connectivity
With Bluetooth® connectivity, users can pair wireless headsets with the camera, avoiding the risks associated with wired headsets in busy industrial environments. This feature also enables seamless data transfer to smartphones, facilitating rapid and efficient sharing of inspection data with enterprise applications. Additionally, Wi-Fi capability enhances the camera’s versatility by allowing easy data transfer to PC-based reporting software.
Connect to Bluetooth headphones and phone apps
Transfer data to PC wirelessly

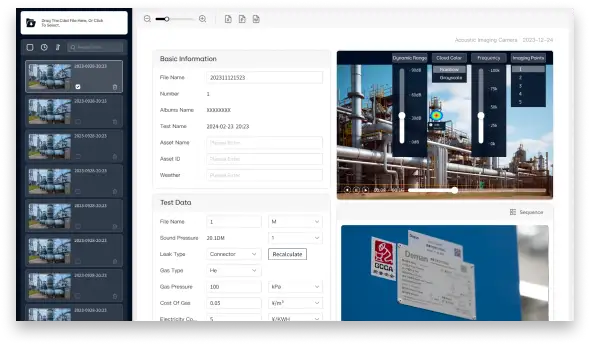

Advanced Reporting Software
The CRY8124 acoustic imaging camera is paired with advanced reporting software that significantly enhances user experience and efficiency. The software boasts a newly redesigned, intuitive interface, making navigation and operation easier than ever. Wireless data transfer capabilities allow users to seamlessly send inspection data from the camera to the software, eliminating the hassle of cables. Additionally, the software supports infrared data analysis and provides powerful tools for data post-processing, enabling comprehensive investigations and the creation of detailed reports.
Redesigned user interface
Wireless data transfer
Generates reports for acoustics and infrared data
Technical Specifications
Acoustic Specifications
Microphone array
200 channels MEMS microphone
Frequency range
2k – 100k Hz
SPL range
28 – 132 dB
Minimum Detectable Leak
10 m 2.7 bar 0.0029 L/min，0.5 m 1.9 bar 0.0028 L/min
Test distance
0.5 – 200 m (1 – 656 ft)
Camera
Camera FOV
66°
Focal length
4.3 mm (0.17 inches)
Camea pixel
13M pixel
Digital zoom
1x – 6x
Fill light
LED * 4
Display
Resolution
1920 * 1200
Size
8 inches
Touchscreen
Capacitive touchscreen
Brightness
600 nits，support auto and manual adjustment
Storage
Storage
64G internal，64G external TF card
Data format
.jpg (picture)，.mp4 (video)，.wav (audio)，.cdat（data）
Video length
10 minutes
Date export
USB-C，Wi-Fi，TF card
Power
Battery capacity
6600mAh @7.2V
Battery type
Smart battery with indicator，replaceable
Battery life
Up to 5 hours
General Specifications
Size
270 * 190 * 51 mm (10.6 * 7.5 * 2.0 inches)
Weight
1.4 kg (3 lbs)
Wi-Fi
802.11a/b/g/n/ac
Bluetooth
BT 5.2
GNSS
GPS+BDS+GLONASS+GALILEO+QZSS
Operating temp.
-20 – +50 ℃，10 – 95 %，no cond.
Storage temp.
-20 – +70 ℃，10 – 95 %，no cond.
IP rated
IP54
Storage size
64G internal，64G external
Warranty
2 years
Certificate
Safety
IEC 61010-1
EMC
IEC 61326-1
Vibration
2g，IEC 60068-2-6
Shock
25g，IEC 60068-2-27
Drop test
1.2 m (4 ft)
Software
Function
Multi-point imaging，directional focus，distance measurement，leak volume estimation，PRPD spectrum，type recongnition，picture labeling，report export，and etc.
Hardware port
USB-C 1
USB 3.0 for charging，HDMI，data export
USB-C 2
USB 2.0 for data export，USB sensor
3.5 mm audio jack
Headphone output
TF card slot
External storage
SIM card slot
Inserting a 4G/5G network communication card
Analog input
4 channels，20 – 100k Hz，IEPE，phantom power supply
Supported Language
Language
Chinese，English，Korean，French，Japanese，Russian，German，Italian，EU Spanish，Portuguese，Hungarian，Dutch，Cambodian，Vietnamese，Turkish，Polish
