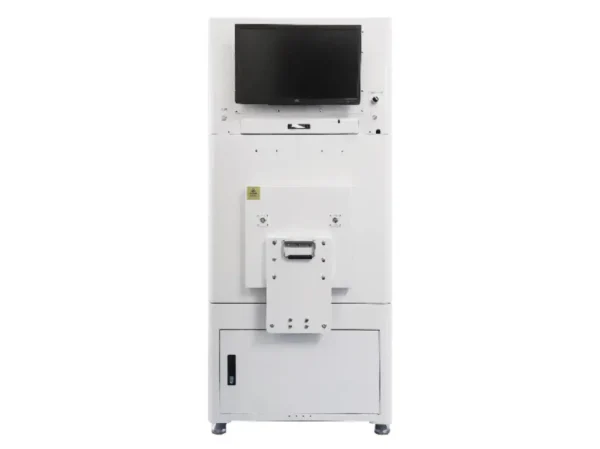

CRY725 Pneumatic Acoustic Test Chamber

CRY725 Acoustic Test Chamber is mainly used to test power, sensitivity and other electrical performance of large-scale wireless electronics and communication products, such as wireless servers, laptop and walkie-talkies, etc. The box can be used with comprehensive tester, vector network analyzer, signal source, channel emulator to carry out the necessary test items. It is able to connect to the wireless devices with Bluetooth, WiFi, GSM, WCDMA, RFID or GPS remote controller.

High RF shielding frequency up to 70dB

Complete communication interface for different tests

Excellent performance

Features

User-friendly drawer type test box for standing operation.
High RF shielding frequency up to 70dB.
Excellent sound isolation and absorption meets the needs of the wearable products in audio test.
Grating installed for safety protection.
Complete communication interface for different tests.

Technical Specifications

Specifications

Color

Beige

Weight

About 340kg

Box dimension

800(L)*780(W)*715(H)mm

Sound-absorbent material

30 mm acoustic wedges

Electrical Specifications

Operating voltage

AC220V, 50/60Hz

Rated power

15W

Pneumatic pressure

>5kg/cm2

Shielding and Soundproofing Performance

RF shielding performance

0.8~6GHz>70dB(Without I/O interface)

Sound isolation performance

100Hz～160Hz>25dB, 200Hz～250Hz>28dB, 315Hz～400Hz>32dB, 500Hz～800Hz>40dB, 1000Hz～4000Hz>53dB, 5000Hz～8000Hz>60dB, 10000Hz～20000Hz>65dB (1/3 octave)

Noise floor

30dBA, exterior noise≤80dBA (No shock or vibration)
