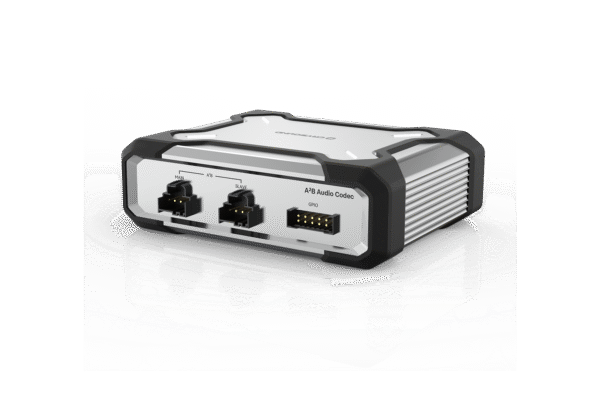

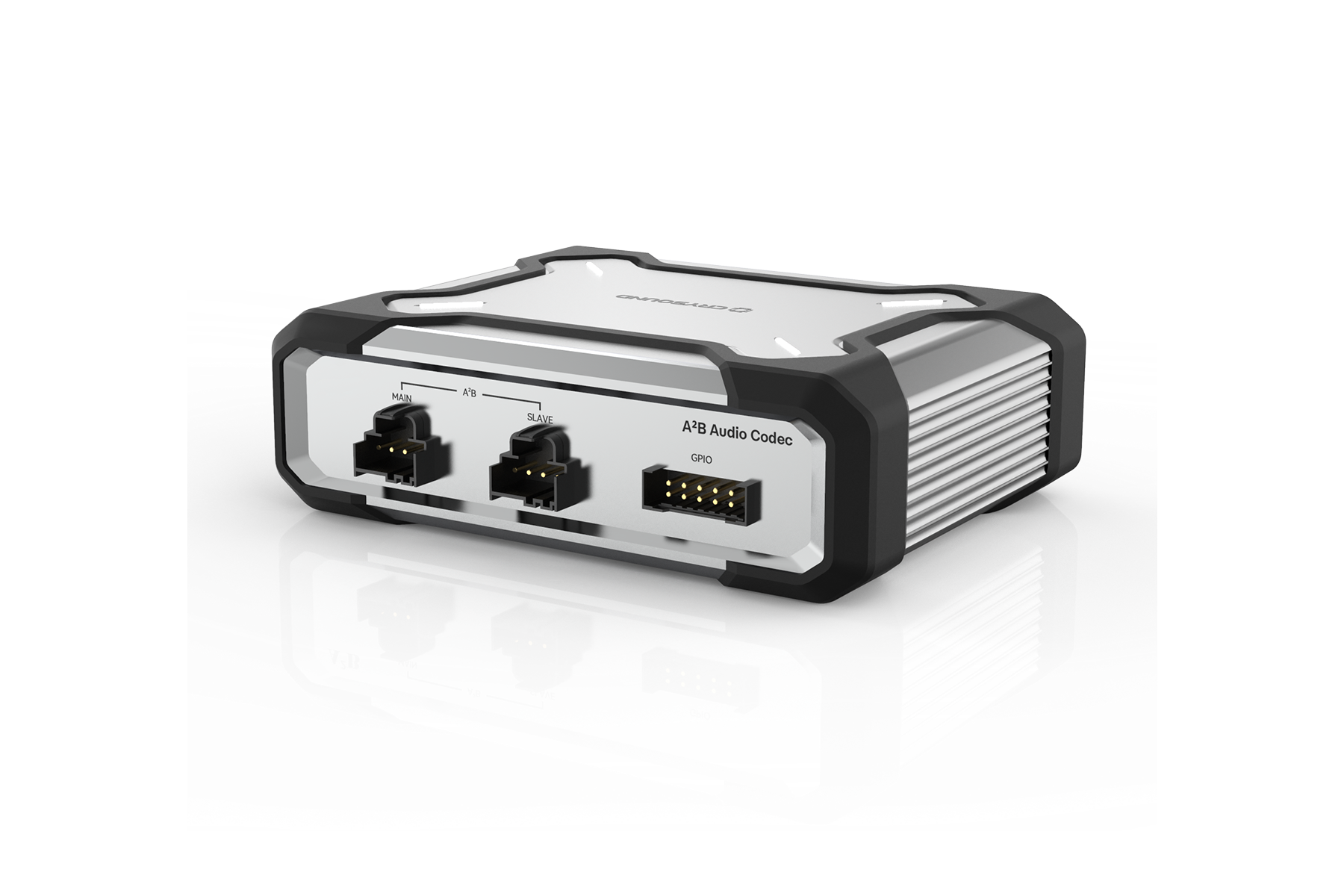

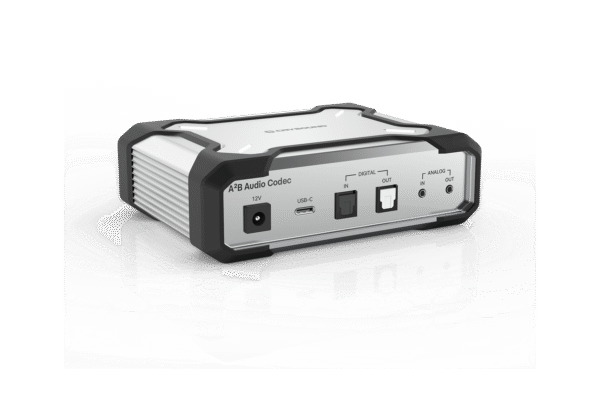

CRY580 A²B Audio Codec
The CRY580 A²B Audio Codec is a key component in automotive audio systems. It converts A²B-transmitted digital audio and control signals into formats that amplifiers, speakers, and other devices can use for playback and processing.
It transmits bidirectional PCM data, clock signals and sync signals over a single differential pair, supporting multi-channel I²S/TDM. Stable communication is maintained up to 15meters (49 feet) node distance, with 1 to 1 or 1 to many connections enabling shared time-division channels.
High Bandwidth
Flexible Topology and Interfaces
Clock Synchronization
Multi-Microphone Input
Features
- Featuring a 50Mbps high-bandwidth digital bus.
- Adopts single-master multi-slave linear topology with daisy-chain support.
- Supports multi-channel I²S/TDM audio interfaces for bidirectional A²B network connectivity (input/output).
- Ensures synchronous sampling and data transmission across all system nodes in each frame.
- Supports PDM interfaces, with up to 4 PDM mic inputs per node.
Technical Specifications
Technical Specifications
Topology
Single-master-multiple-slave linear topology
3.5mm Audio Interface
Supports analog audio input/output
USB Interface
Supports digital audio playback and recording
PDM Interface
Supports 4 high-dynamic-range microphone inputs
I²C Interface
Supports up to 4 high-dynamic-range microphone inputs
Transmission Distance
50Mbps
Rated Voltage
15 meters
Rated Current
12V(DC)
Operating Temperature
1.5A
-10~40°C
