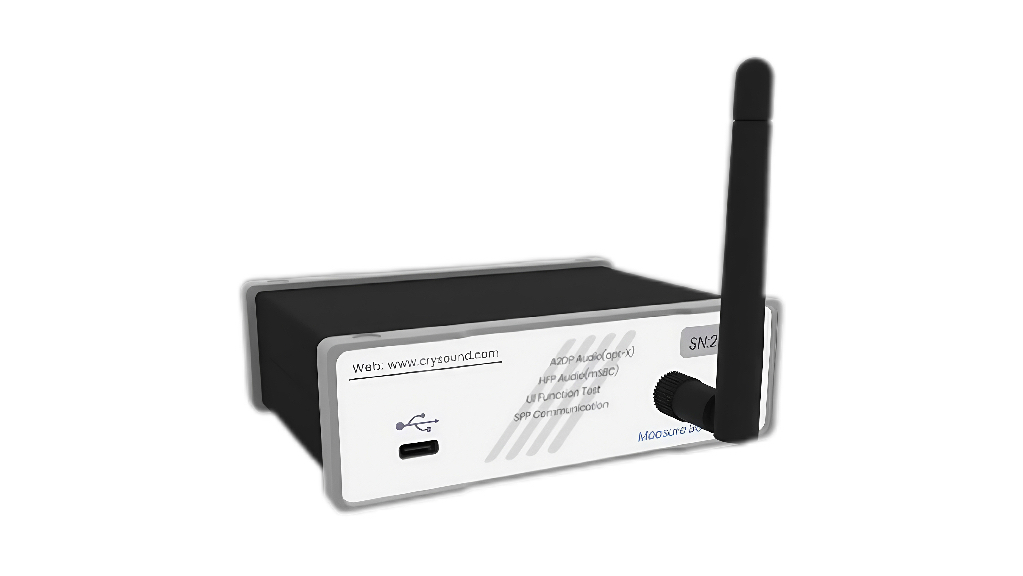

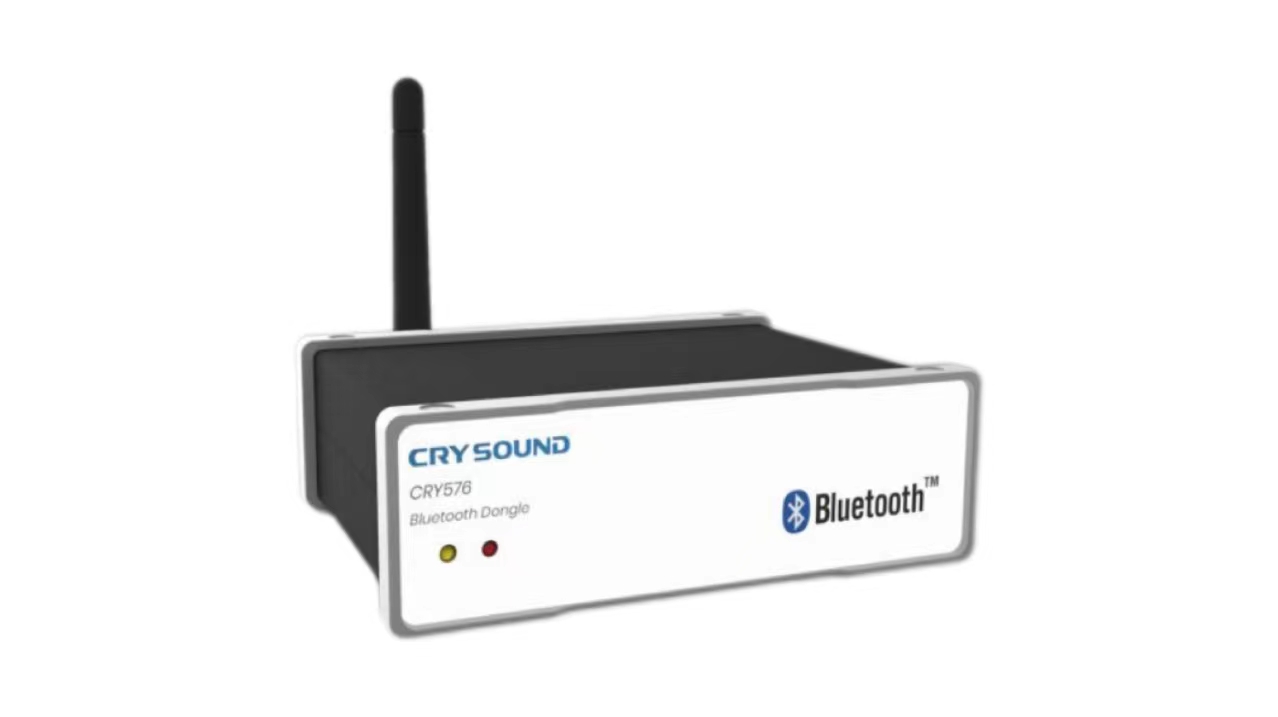

CRY576 Bluetooth® Dongle

CRY576 Bluetooth® Dongle is a Bluetooth device designed for Bluetooth audio and UI testing. The CRY576 is engineered for use in R&D laboratories and production lines. It is versatile, functioning seamlessly both with the CRY6151B electroacoustic tester and as a stand-alone module with other testing equipment. The CRY576 supports a range of Bluetooth solutions with high reliability and fast test speeds, connecting to most solutions in under 3 seconds. Users can operate the CRY576 via CRY6151B test software or its own stand-alone tool software to perform functions such as searching, pairing, connecting, playing audio, and recording.

Adapts to various Bluetooth chips

Fast and stable Bluetooth communication

Support secondary development

Features

Support for a range of new audio codecs (aptX, LHDC, etc.), new operational features in the supported modification profiles, and faster connection time.
Logging of interactions is improved, allowing customers to locate problems as quickly as possible.
Support DFU remote upgrade firmware when new Bluetooth features and improvements are offered.
Support both USB and serial port communication.

Technical Specifications

Specifications

Bluetooth Core Spec.

4.2

Profiles & Roles

A2DP Source, HFP Audio Gateway, AVRCP Controller/Target, SPP

Codecs

SBC, apt-X, CVSD, mSBC

A2DP Sample Rate

48kHz, 44.1kHz, 32kHz, 16kHz

A2DP Sample Rate

16kHz, 8kHz

USB Connection

USB-C

RF Connection

SMA

RF Characteristic

Maximum Transmit Power

5.28dBm

Maximum Transmit Power

-24dBm

Sensitivity DH1

-81dBm

Sensitivity 3DH5

-75dBm

Audio Transceiver Characteristic

SBC 44. 1kHz

100dBFS

SBC 48kHz

100dBFS

apt-X 44. 1kHz

98dBFS

apt-X 48kHz

98dBFS

CVSD 8kHz

74dBFS

mSBC 16kHz

86dBFS
