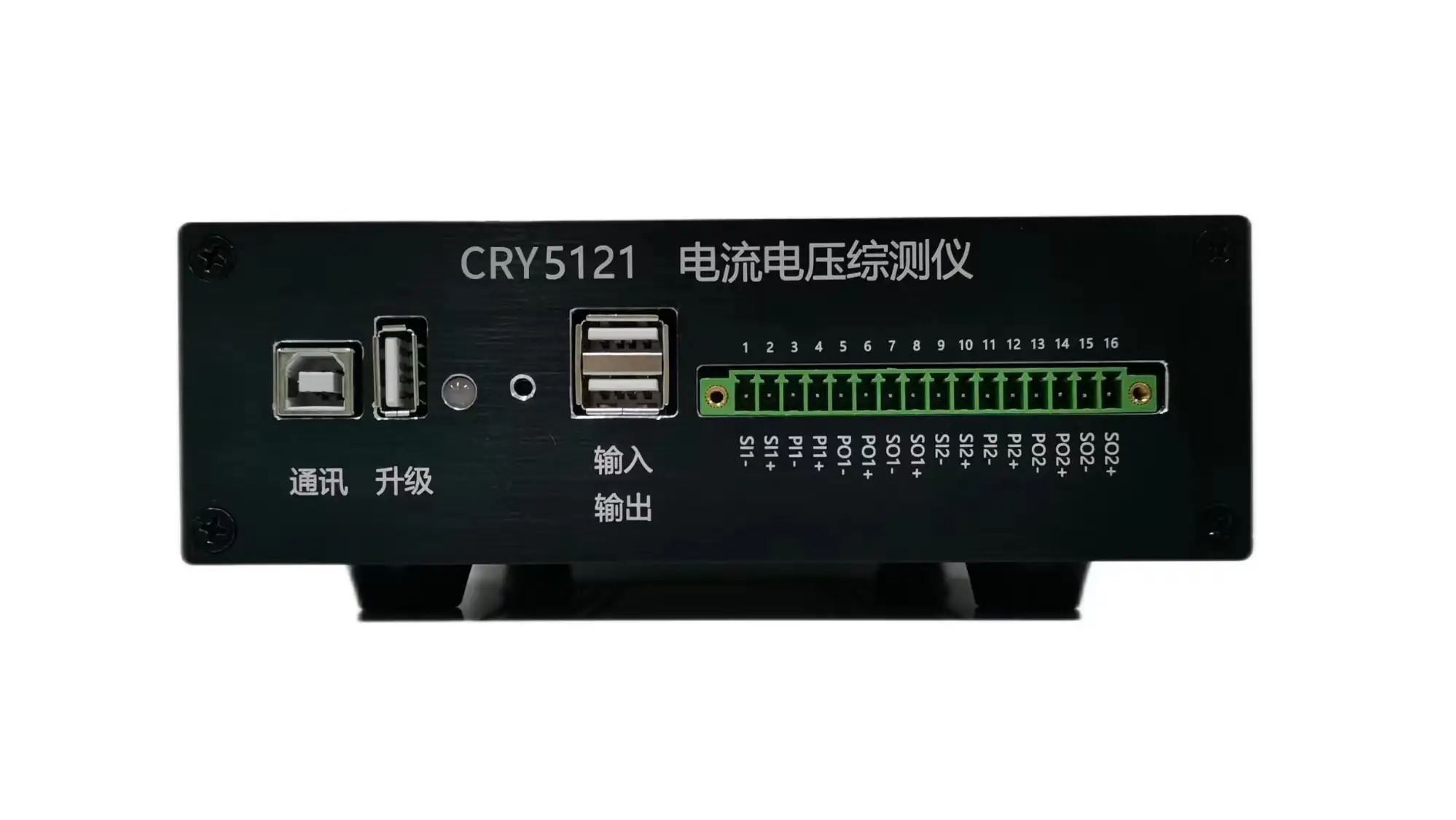

CRY5121 Programmable Battery Simulator
The CRY5121 programmable battery simulator is designed for mass-production to test voltage and current.
The has versatile functions, stability, precision, along with multiple channels, meeting the requirements of consumer electronic product testing.
Wide voltage & current range
Multi-scale measurement
Programmable test parameters
Dual-channel independent testing
Features
- The device supports external input voltage with automatic range switching, covering a measurement range of 5mV to 27V.
- Features external input current with automatic range switching, spanning 2nA to 3.5A.
- Current tests can be conducted at three levels: nA, µA, and mA.
- The range mode includes both auto-switching and fixed value options.
- Voltage and current threshold parameters can be set, with each current unit threshold parameter saved independently.
- Dual channels can be tested independently, each with its own parameters.
- Communication is facilitated through PC serial ports, allowing for parameter settings and results to be read and uploaded to an MES.
- The device is powered via USB, simulating battery charging and providing a constant current load function.
- Features automatic disconnection and alarms for over-range conditions.
Technical Specifications
Specifications-Maximum Absolute Rating
AC supply
AC90-240V/50-60Hz
Input voltage PI1+/PI1-,PI2+/PI2-
-30～+30V,-0.3～+30V
Input Current
4.096A
Simulation of supply current
2.5A
Simulation of charging current
2.5A
Constant loaded pressure
7V
Constant loaded current
0.35A
Storage temperature
-40～125℃
ESD rated value-Human Body Model(HBM)
2500V
ESD rated value-Charging Device Model(CDM)
1000V
ESD rated value-Machine Model(MM)
150V
