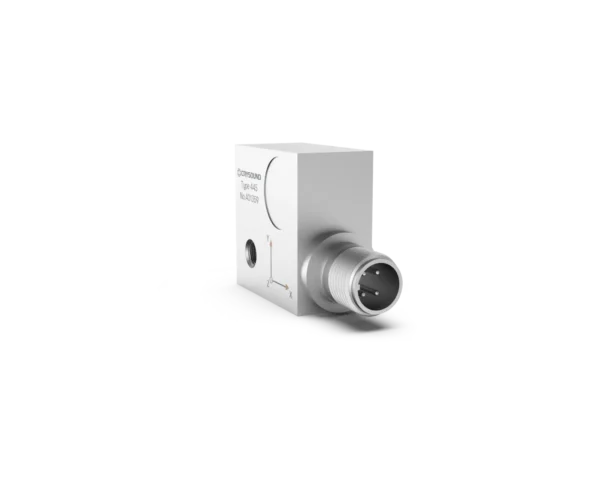

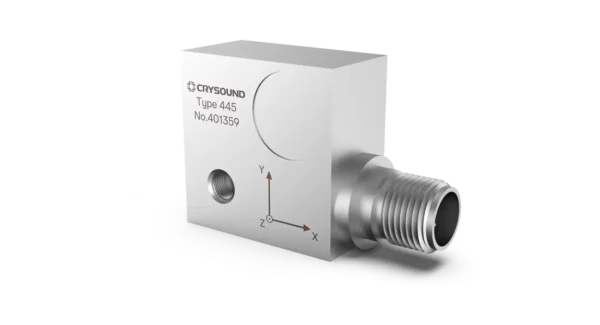

CRY445 Accelerometer, Triaxial, 100mv/g, ±80g pk, 1Hz to 4kHz
The CRY445 is a triaxial acceleration sensor with a side-end M12*1 (4-pin) output that is mounted on an object via a 10-32 UNF stud. It is often used for on-line monitoring of vibration state of industrial equipment.
CRY445 can be equipped with armored shielded cables to measure vibration parameters such as acceleration, velocity, and displacement under strong interference conditions such as industrial and electric power.
Side M12*1 (4-pin) connector
M5 bolt installation
Built-in IEPE preamplifier
Three-way output, Simultaneously measure X, Y, and Z directions
Technical Specifications
Dynamic Specification
Measuring Range (peak)
±80g pk
Sensitivity (25℃)
100mV/g(160Hz)
Frequency Response
1Hz to 4kHz(±1dB); 0.5Hz to 8kHz(±3dB)
Transverse Sensitivity
≤5%
Electrical Specification
Output Impedance
<100Ω
Excitation Voltage
18VDC to 28VDC (Constant Current Source)
Full Scale Output (peak)
±8V
Constant Current Source Current
2mA to 10mA
Bias Voltage
10V to 14V
Background Noise
＜200μV
Install Ground Insulation
≥10^8Ω
Environmental Specification
Maximum Shock Level
±1,000g
Operating Temperature
-40℃ to 120℃(-40℉ to 248℉ )
Physical Specification
Connector Type
Side M12*1 (4-pin)
Threaded Interface
M5
Construction
Shear
Case Material
304 Stainless Steel
Piezoelectric Materials
PZT-5
Level of Protection
IP65
Weight
95g
