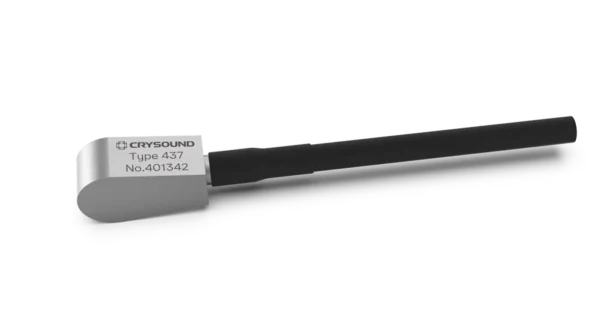

CRY437 Accelerometer, 1 Axis, 10mv/g, ±500g pk, 2Hz to 8kHz
CRY437 is a miniature single-axis acceleration sensor. The output mode is through the overall side connection(L5), and it is installed on the object in a glued way. It can be used to measure small movements in laboratory and scientific research, and can also be used to monitor the vibration state of industrial equipment online.
The small volume of CRY437 makes it an excellent choice for measurements in limited spaces and fine structures.
Overall cable to 10-32UNF
Compact structure
Low impedance output
Technical Specifications
Dynamic Specification
Measuring Range (peak)
±500g pk
Sensitivity (25℃)
10mV/g(160Hz)
Frequency Response
2Hz to 8kHz(±1dB)
Transverse Sensitivity
≤5%
Electrical Specification
Output Impedance
＜100 Ω
Excitation Voltage
24VDC to 28VDC (Constant Current Source)
Full Scale Output (peak)
±5V
Constant Current Source Current
2mA to 10mA
Noise
<100μV
Bias Voltage
+11V to +13V
Environmental Specification
Maximum Shock Level
2000g
Operating Temperature
-40℃ to +80℃(-40°F to 176 °F)
Physical Specification
Connector Type
Overall cable to 10-32UNF(M5, Microdot)
Mounting
Glue
Construction
Shear
Case Material
304 Stainless Steel
Piezoelectric Materials
PZT-5
Weight
2g(Excluded Cable)
