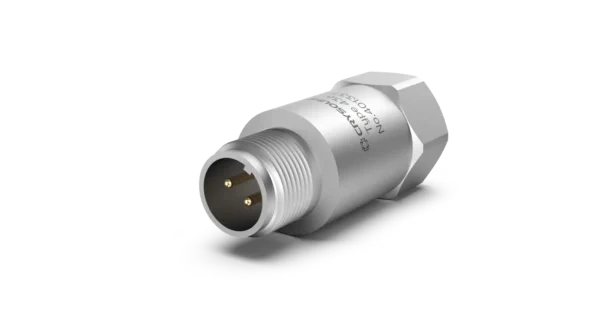

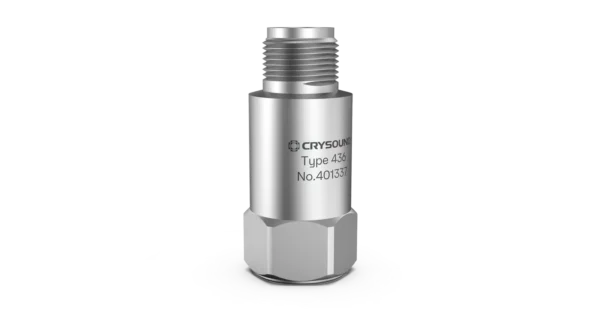

CRY436 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 1Hz to 12kHz
CRY436 is a single-axis acceleration sensor. The output mode is a 2 – core connector that complies with the MIL – C – 5015 standard and is installed on the object through an 1/4-28 coupling bolt. It is often used for on-line monitoring of vibration state of industrial equipment.
CRY436 can be equipped with armored shielded cables to measure vibration parameters such as acceleration, velocity, and displacement under strong interference conditions such as industrial and electric power.
Top output, MIL-C-5015 (2-pin socket)
1/4-28 coupling bolt mounting
Built-in IEPE preamplifier
Excellent anti-interference
Technical Specifications
Dynamic Specification
Measuring Range (peak)
±50g pk
Sensitivity (25℃)
100mV/g(160Hz)
Frequency Response
1Hz to 12kHz(±10%); 0.5Hz to 20kHz(±3dB)
Transverse Sensitivity
≤5%
Electrical Specification
Output Impedance
＜100 Ω
Excitation Voltage
18VDC to 28VDC (Constant Current Source)
Full Scale Output (peak)
±5V
Constant Current Source Current
2mA to 10mA
Noise
＜50uV
Bias Voltage
＋10V to＋14V
Install Ground Insulation
≥10^8Ω
Environmental Specification
Maximum Shock Level
±3000 g
Operating Temperature
-40℃ to 120℃(-40℉ to 248℉ )
Physical Specification
Connector Type
Top 5/8-24 (2-pin socket)
Threaded Interface
1/4-28
Construction
Shear
Case Material
304 Stainless Steel
Piezoelectric Materials
PZT-5
Level of Protection
IP65
Weight
48g
