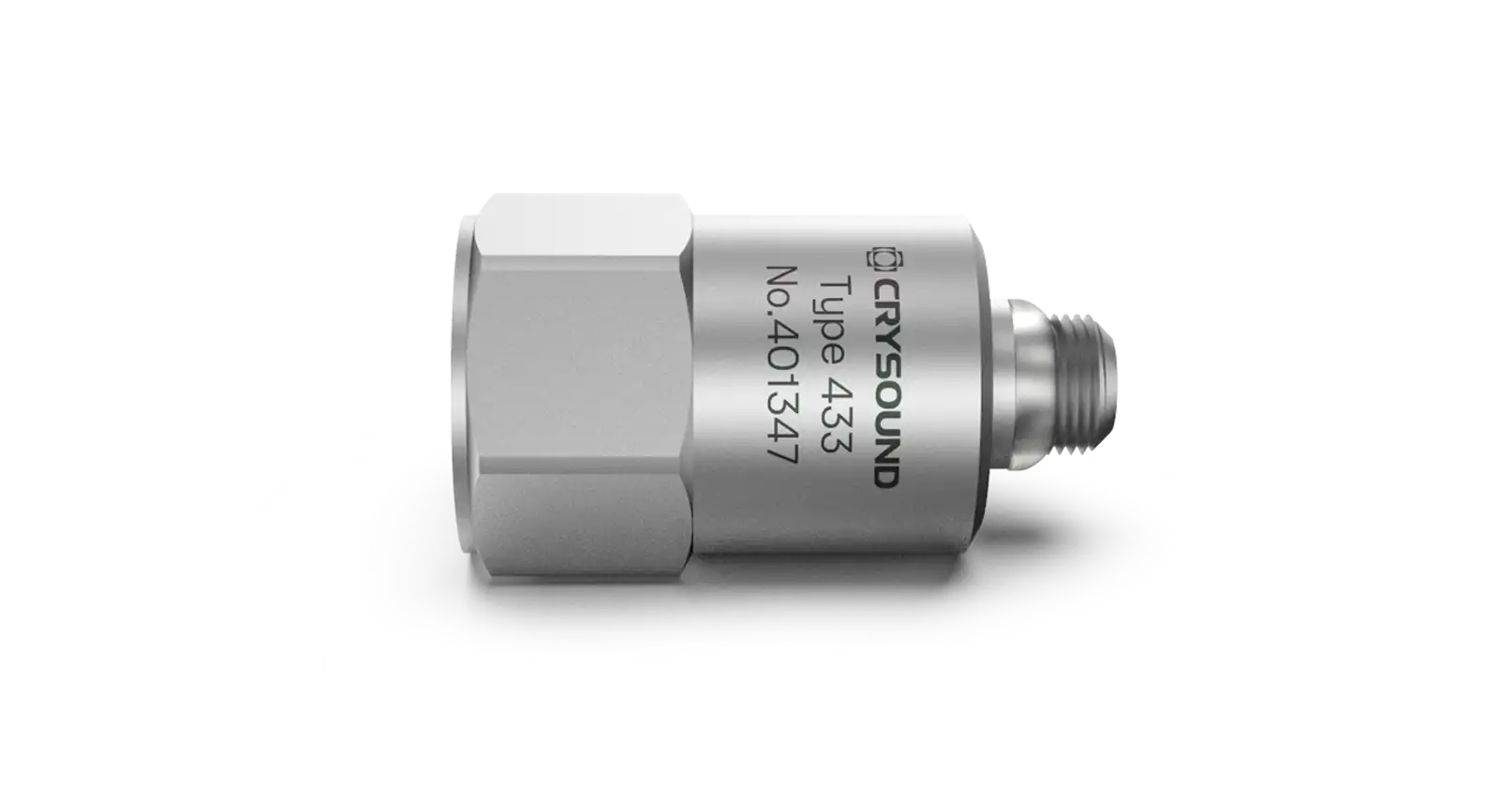

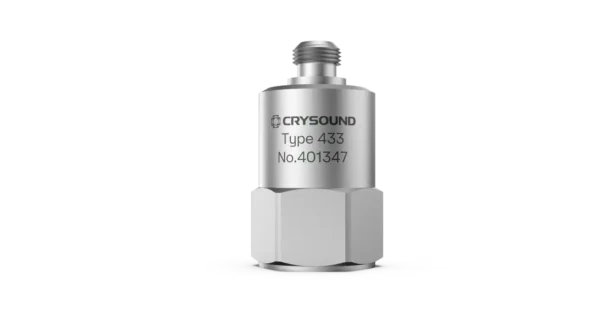

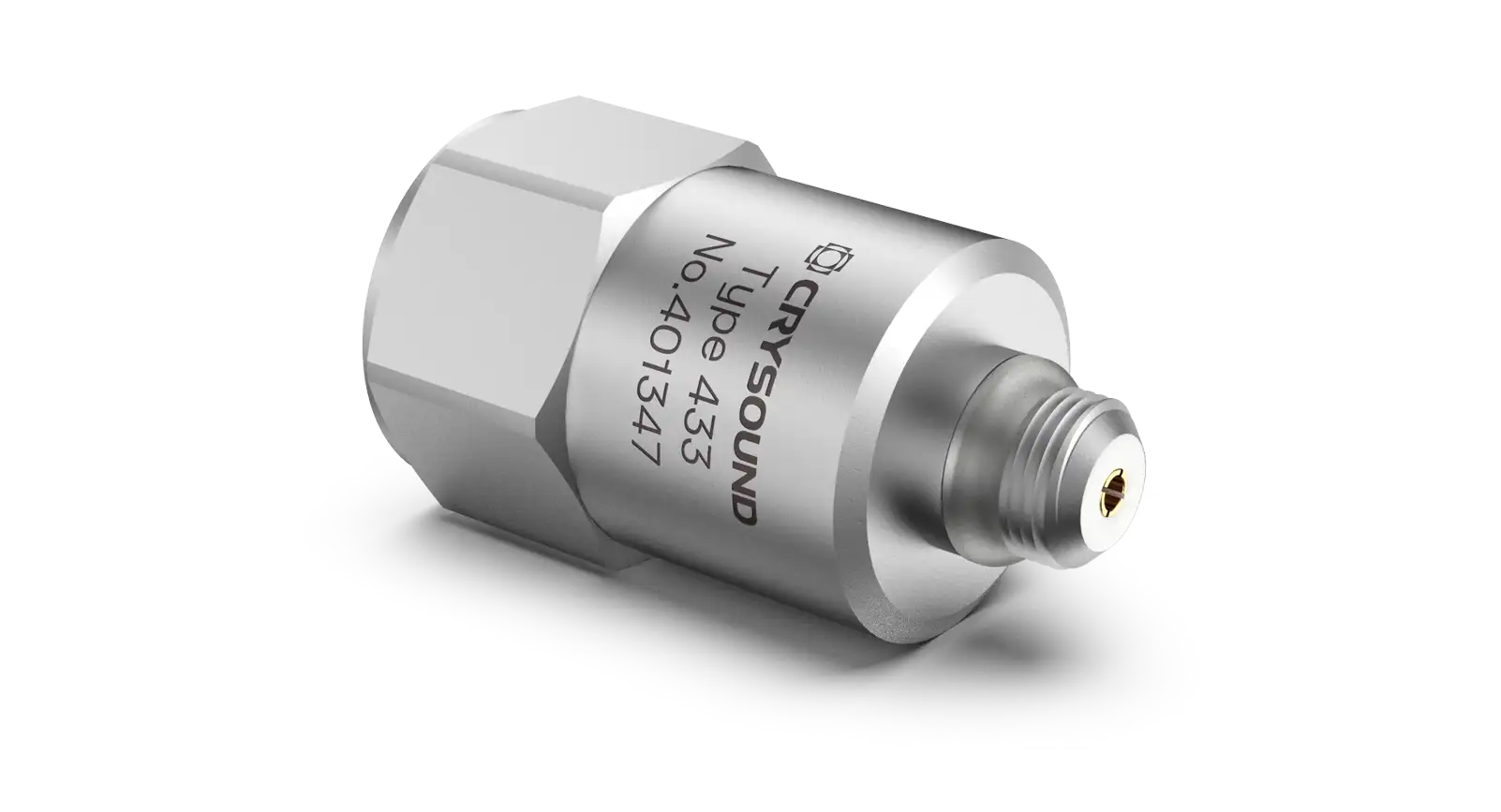

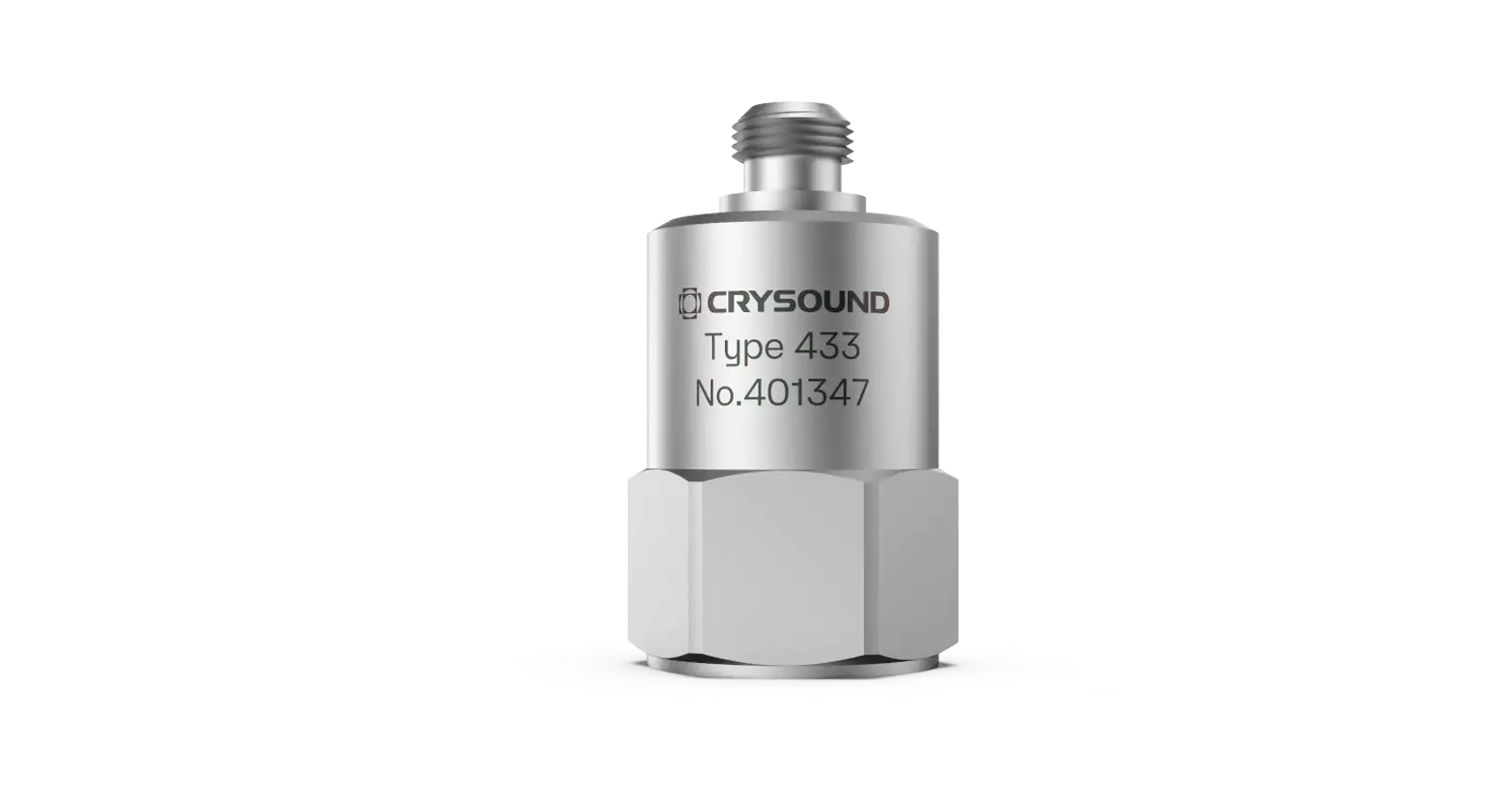

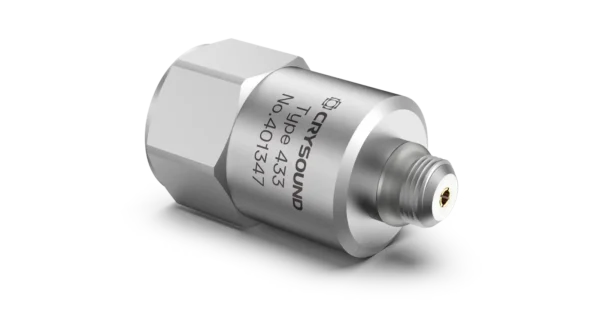

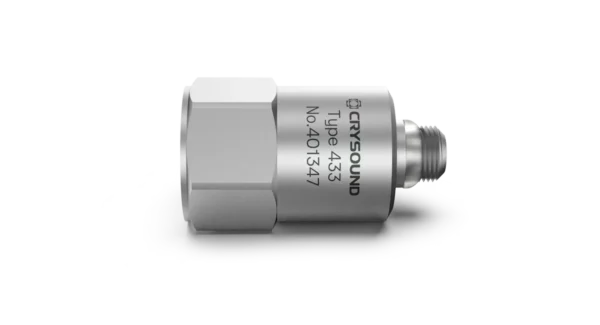

CRY433 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 0.5Hz to 8kHz

The CRY433 is a single-axis acceleration sensor designed for precision and versatility. It features a 10-32 UNF output mode on the top, allowing it to be securely mounted to objects using a 10-32 UNF bolt. This sensor is ideal for detecting small movements in laboratory and scientific research, as well as for real-time vibration monitoring of industrial equipment. ‍ The CRY433 can be fitted with armored shielded cables, enabling accurate measurement of vibration parameters such as acceleration, velocity, and displacement, even in environments with significant industrial or electrical interference

Top 10-32UNF (M5, Microdot) connection

M5 bolt mounting

Built-in IEPE preamplifier

Technical Specifications

Dynamic Specification

Measuring Range (peak)

±50g pk

Measuring Range (peak)

100mV/g(160Hz)

Frequency Response

0.5 Hz to 8 kHz(±1 dB)

Transverse Sensitivity

≤5%

Electrical Specification

Output Impedance

<100Ω

Excitation Voltage

18VDC to 28VDC (Constant Current Source)

Full Scale Output (peak)

±5V

Constant Current Source Current

2mA to 10mA

Noise

＜50uV

Bias Voltage

-9V – 12V

Environmental Specification

Maximum Shock Level

±3000g

Operating Temperature

-40℃ to 120℃(-40℉ to 248℉ )

Physical Specification

Connector Type

Top M5

Threaded Interface

Construction

Shear

Case Material

304 Stainless Steel

Piezoelectric Materials

PZT-5

Weight

13 g
