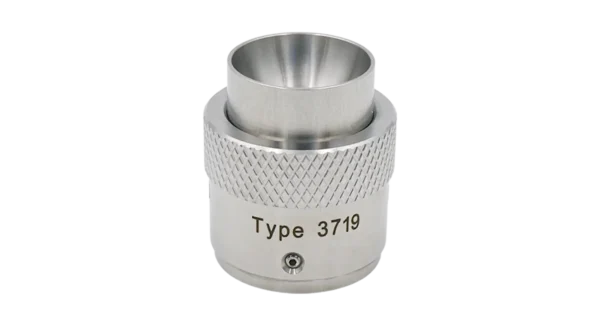

CRY3719 Coupler IEC 60318-5
CRY3719 is a 2cc coupler designed specifically for audiometry and acoustic testing of insert earphones.
The unique design of CRY3719 features a resonant frequency of 22.4kHz, effectively avoiding interference with measurements within the audible frequency range. This enables stable and reliable high-quality acoustic testing.
Compliant with IEC 60318-5 standard
Extensive compatibility
Durable, reliable, and high-quality
CRY3719 Ear Simulator Typical Frequency Response
The graph (right) shows the frequency response curves obtained using the electrostatic excitation method.
Technical Specifications
Technical Specifications
Frequency Response
125Hz to 8kHz
Equivalent Volume
2cc
Standards
IEC60318-5, ANSI S3.7、 GB/T 20441.4-2006
Weight
50g
