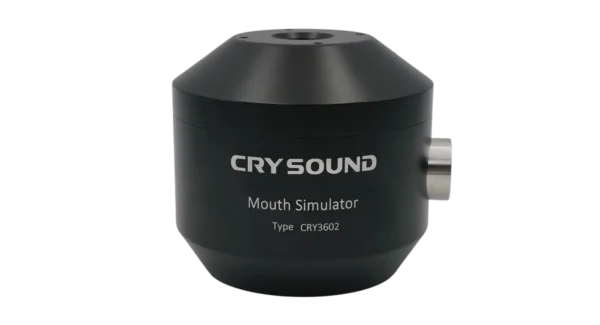

CRY3602 Mouth Simulator with Built-In 20dB Amplifier
CRY3602 mouth simulator is a sound source used to simulate the sound field near the human mouth. It is widely used for testing acoustic parameters such as the frequency response and distortion of telephone transmitters and microphones.
CRY3602 mouth simulator has a built-in power amplifier. There is no need to purchase an additional power amplifier. It can be directly connected to a sound card or signal generator, simplifying the connection of the test system.
CRY3602 mouth simulator has a built-in power amplifier. There is no need to purchase an additional power amplifier. It can be directly connected to a sound card or signal generator, simplifying the connection of the test system.
Built-in power amplifier
High stability
Low distortion
Complies with IEEE 269,661 and ITU-T P51 standards
CRY3602 Mouth Simulator Typical Frequency Response
The graph (right) depicts the frequency response and distortion curves measured at a voltage level of 1V
Technical Specifications
Technical Specifications
Max Continuous Output SPL (25mmMRP)
110 dB（200 Hz to 10 kHz） 100 dB (100 Hz to 10 kHz)
THD(94dBSPL, 25mmMRP)
<1.5% ,Typical: <1.0% (200 Hz to 10 KHz )
Frequency Response
EQ:94dB ±1 dB（100Hz to 10kHz）
Aperture Size
Ø20mm
Maximum Input Signal
1Vrms
Built-in Power Amplifier Gain
20dB
Built-in Power Amplifier Power
20W
Built-in Power Amplifier
19V
Lip Ring
Outside diameter: Ø51mm；Heigth: 25mm
Diameter
Ø99mm
Height
90mm
Weight
1.0kg
Connector Type
BNC
