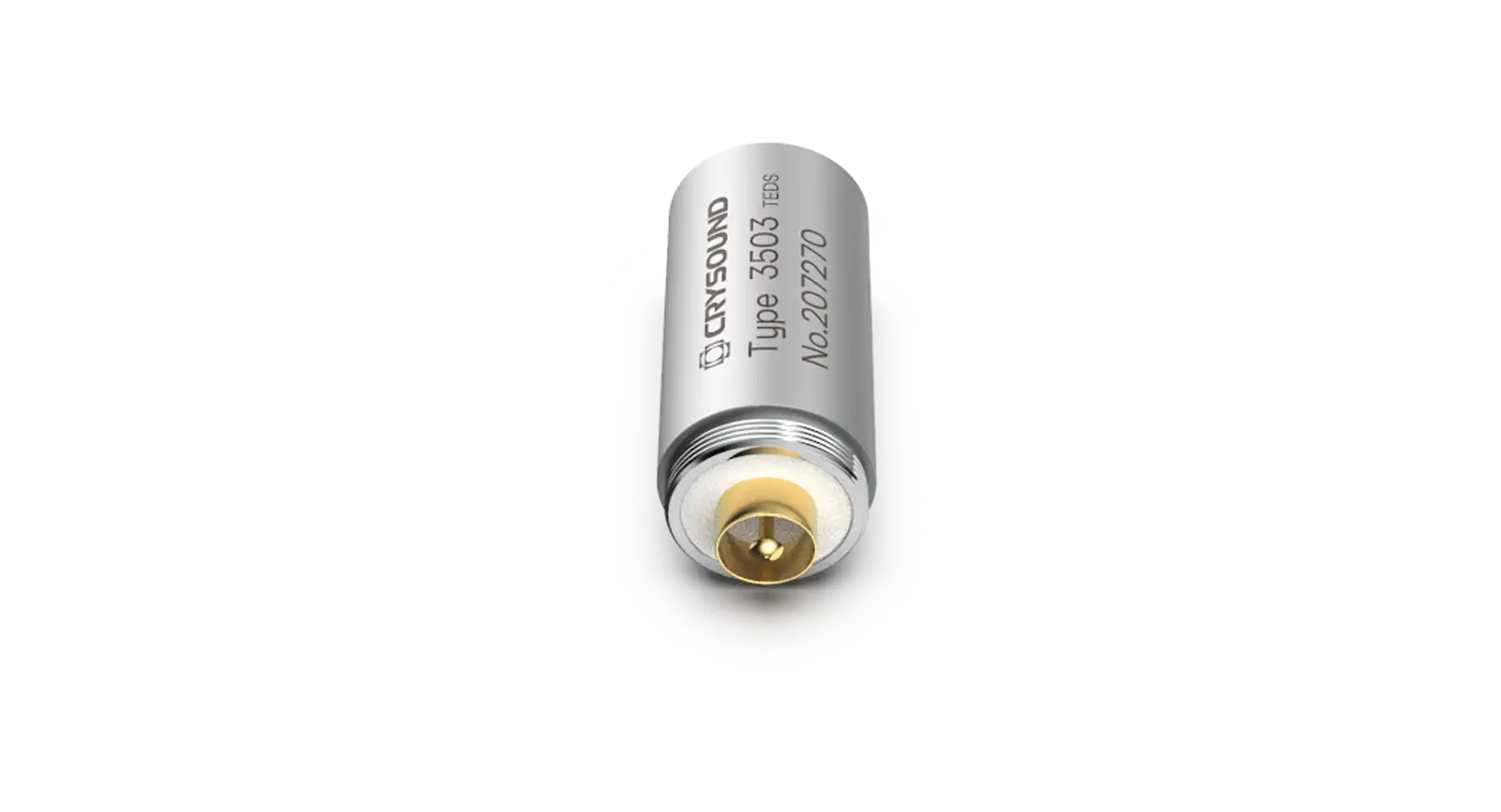

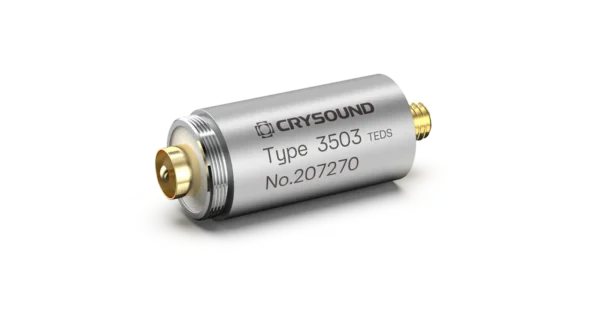

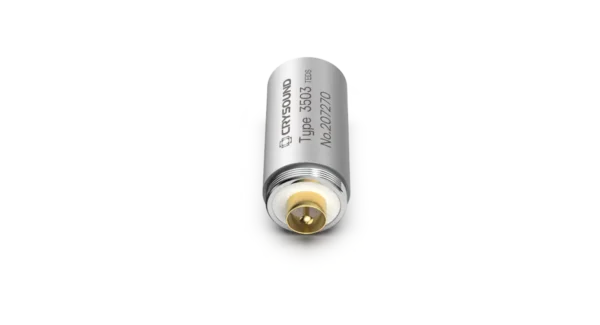

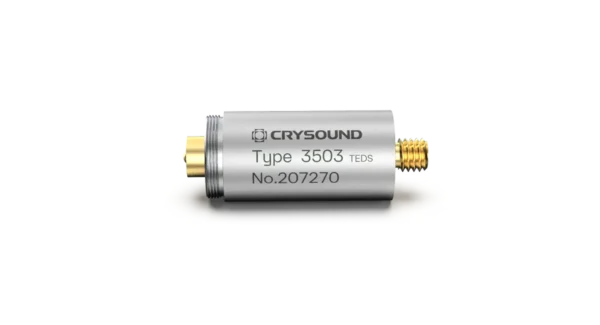

CRY3503 1/2″ Preamplifier, IEPE, Microdot Connector, Very Short
CRY3503 is a constant current power preamplifier. It can be used with the CRY3000 series 1/2 inch prepolarized measurement microphone and is widely compatible with other brands.
CRY3503 converts high input impedance to low output impedance, allowing the use of a longer extension cable. The advantage is that the background noise is low and it hardly causes a load on the microphone. It supports the TEDS function and reduces test time. The compact design enables it to measure in environments with limited space.
High input impedance, low output impedance
10-32UFN(Microdot/M5) Interface
Supports “Smart Transducer Interface” IEEE 1451.4 containing TEDS
Low background noise
Technical Specifications
Technical Specification
Frequency Response Range
1Hz ~ 200kHz (±0.2 dB)
Input Impedance
>26,0.4pF
Output Impedance
＜50Ω
Distortion (THD)
＜0.1%
Max Output Voltage
＞10Vp
Power Supply
2 mA to 20mA（Typical 4mA）
Nominal Operating Current
4mA
Noise, A-weighting
< 3 µV rms
Noise, linearity (20 ~ 20kHz)
< 4 µV rms
DC bias voltage
12V±2V
Connector Type
Microdot(M5/10-32UFN)
Temperature
-30 to +70℃(-22 to 158 °F )
Threaded Coupling
11.7-60 UNS
Diameter
12.7mm (0.5” )
Length
31.5mm(1.24”)
