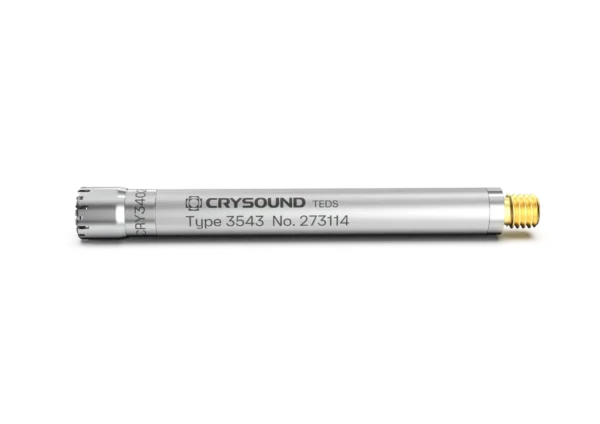

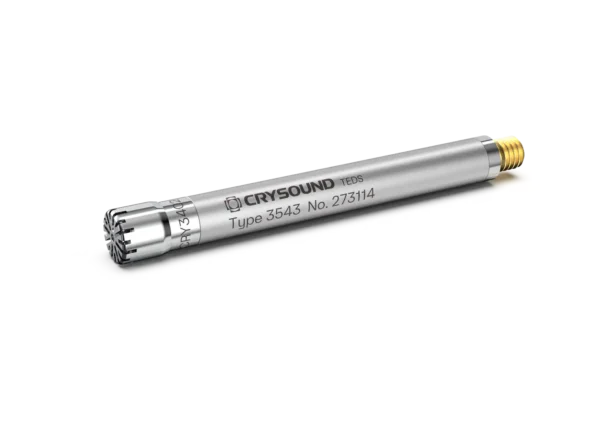

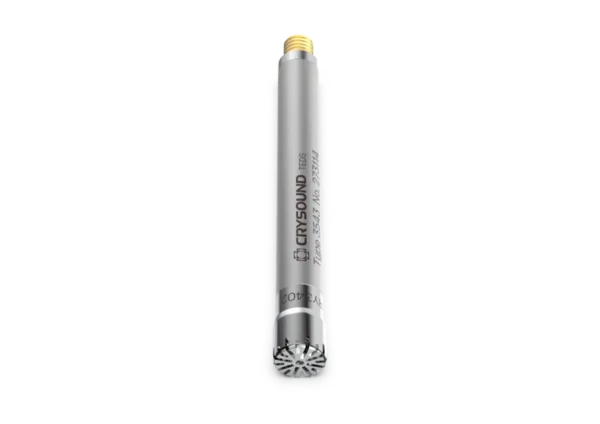

CRY3402-S02 Pressure-Field Microphone Set, 1/4″, 1.6mV/Pa
CRY3402-S02 is a 1/4-inch pressure-field prepolarized measurement microphone and preamplifier set designed for high-frequency and high-dynamic-range acoustic measurements.
The unique design of CRY3402-S02 provides a flat frequency response, allowing for measurement frequencies up to 70 kHz. It is also capable of withstanding sound pressure levels of up to 168 dB. This makes it an excellent general-purpose measurement microphone for high-definition audio measurements and other ultrasonic acoustic applications.
Ultra-high frequency pressure-field microphone set
TEDS microphone set
Extensive compatibility
Durable, reliable, and high-quality

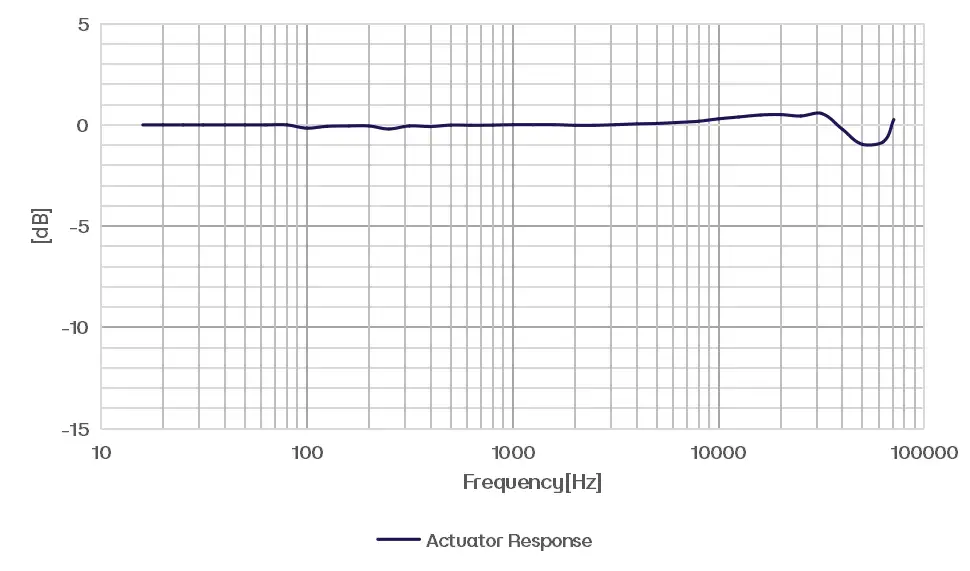

CRY3402-S02 Measurement Microphone Set Typical Frequency Response
The graph (right) shows the frequency response curves obtained using the electrostatic excitation method.
Technical Specifications
Technical specification
Field Type
Pressure-field
Noominal Sensitivity
1.6mV/Pa, -56±3dB re 1V/Pa
Frequency Response
4Hz to 70kHz±2dB
Polarization Voltage
0V
Dynamic Range(re.20uPa)
45 dBA to 168 dB
Operating Temperature
-20 to +60℃ (-4 to +140℉)
Temperature Stability
0.010dB/℃(-10 to +50℃) 0.006dB/℉(+14 to +122℉)
Static Pressure Stability
-0.01dB/kPa
Operating Humidity Range
0 to 90%RH no condensation
Humidity Stability
< 0.1dB (0 to 90%RH no condensation)
Pressure Equalization Vent
Side vented
IEC 61094-4 Type
WS3P
Output Impedance
< 50Ω
Maximum Output Voltage
> 10.0Vp
Current Source
IEPE (2mA to 20mA)
Typical Operating Current
4mA
Interface Type
10-32UNF
Height with Grid
56.2mm (2.213″)
Diameter with Grid
7mm (0.276″)
