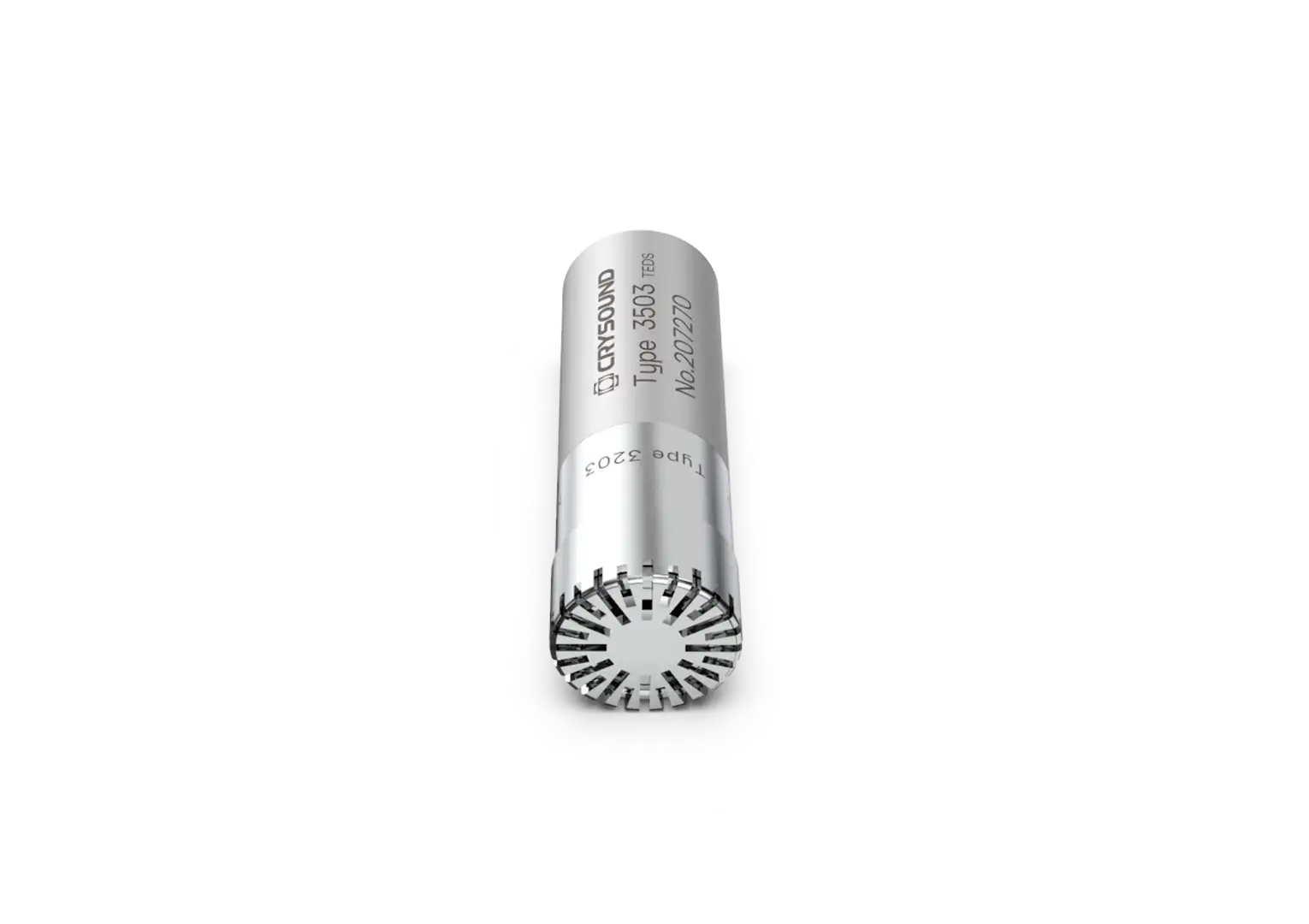

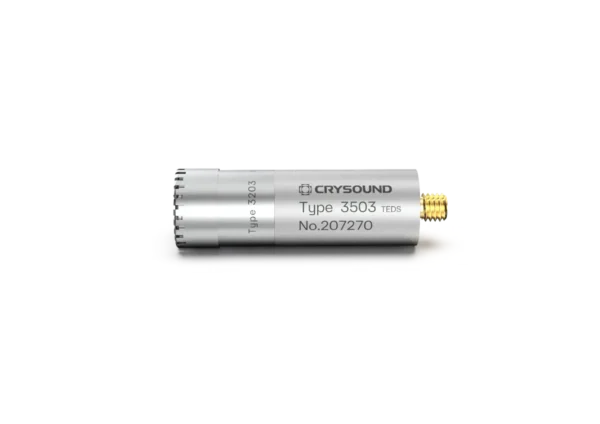

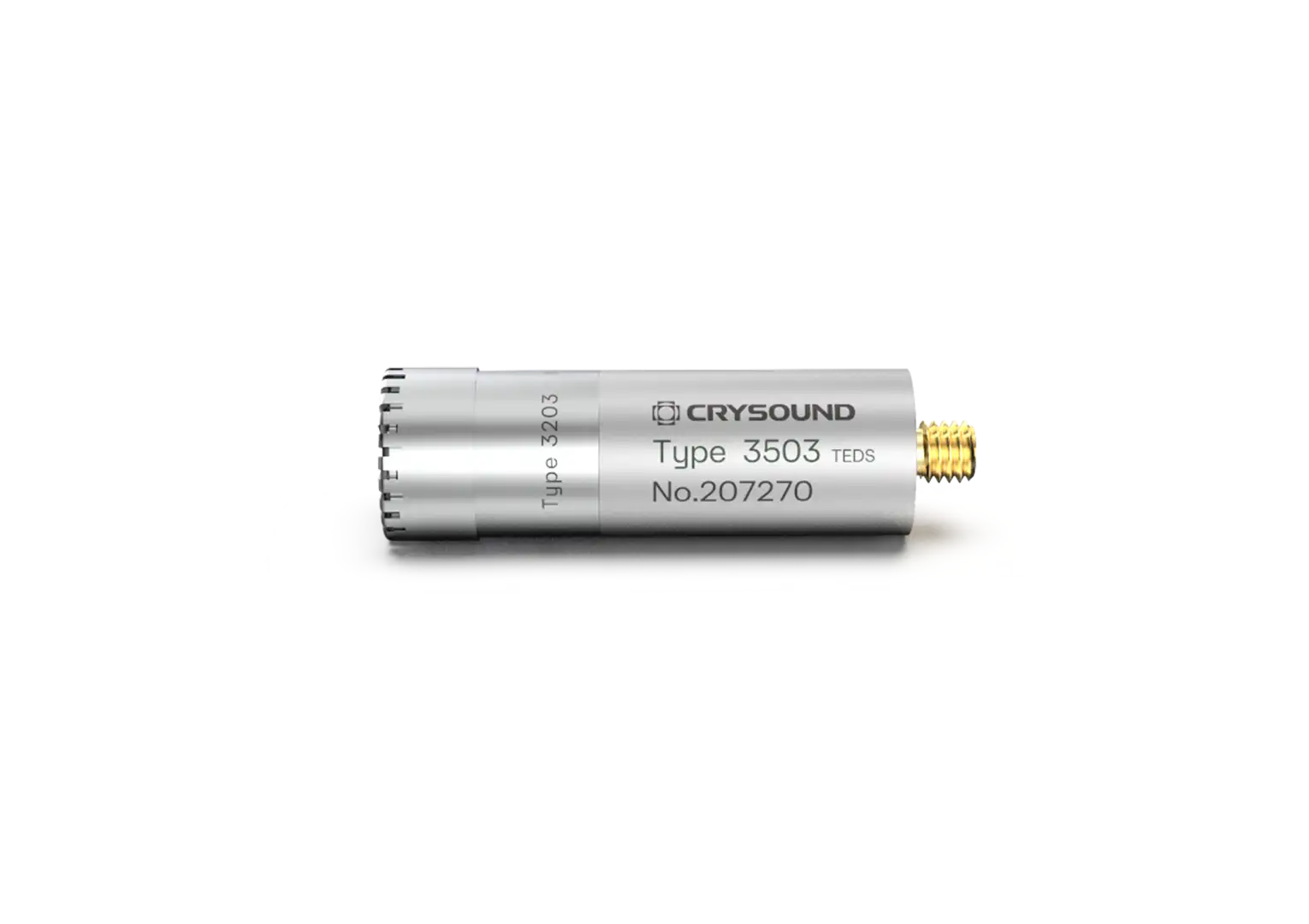

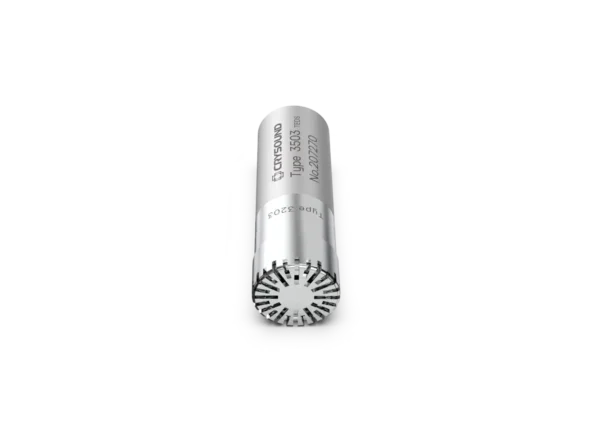

CRY3203-S02 Free-Field Microphone Set, 1/2″, 50mV/Pa

CRY3203-S02 is a 1/2-inch free-field prepolarized measurement microphone and preamplifier set widely used in acoustic testing environments, such as anechoic chambers and quiet rooms. ‍ The unique design of CRY3203-S02 allows it to have a frequency response range that matches the auditory frequency range of the human ear, making it highly suitable for noise detection. Additionally, it is also widely applicable in various fields including electroacoustic measurements, audio measurements, and acoustical research.

CRY3203-S02 Measurement Microphone Set Typical Frequency Response

The graph (right) shows the frequency response curves for 0° incidence in a free-field environment and the frequency response curves obtained using the electrostatic excitation method.

Technical Specifications

Technical specification

Field Type

Free-field

Noominal Sensitivity

50mV/Pa, -26±1.5dB re 1V/Pa

Frequency Response

3.15Hz to 20kHz±2dB

Polarization Voltage

Dynamic Range(re.20uPa)

15 dBA to 138 dB

Operating Temperature

-30 to +70℃ (-22 to +158℉)

Temperature Stability

0.012dB/℃(-10 to +50℃) 0.007dB/℉(+14 to +122℉)

Static Pressure Stability

-0.01dB/kPa

Operating Humidity Range

0 to 90%RH no condensation

Humidity Stability

< 0.1dB (0 to 90%RH no condensation)

Pressure Equalization Vent

Rear vented

IEC 61094-4 Type

WS2F

Output Impedance

< 50Ω

Maximum Output Voltage

> 10.0Vp

Current Source

IEPE (2mA to 20mA)

Typical Operating Current

4mA

Interface Type

10-32UNF

Height with Grid

43mm (1.69″)

Diameter with Grid

13.2mm (0.52″)
