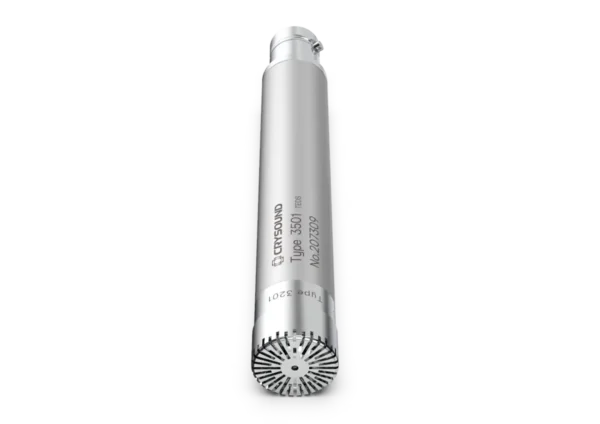

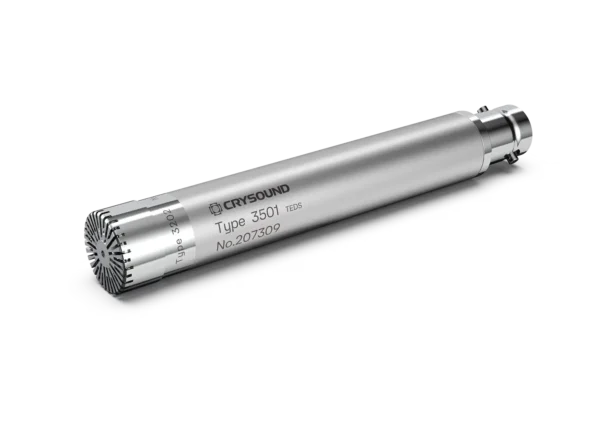

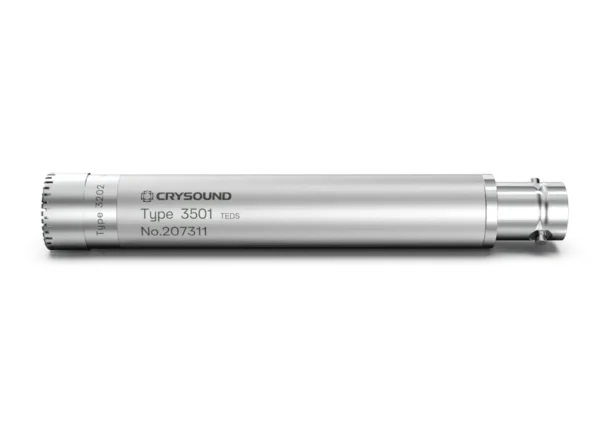

CRY3202-S01 Pressure-Field Microphone Set, 1/2″, 12.5mV/Pa
The CRY3202-S01 is a 1/2-inch pressure-field prepolarized measurement microphone and preamplifier set designed to be used in conjunction with a coupler chamber for conducting relevant electroacoustic testing.
The CRY3202-S01 boasts a unique design that enables high-quality, wideband testing for in-ear monitors and earbuds. With a frequency range extending up to 20kHz, it surpasses the testing capabilities of most simulated ears, ensuring precise and comprehensive evaluations.
Full-range pressure-field microphone set
TEDS microphone set
Extensive compatibility
Durable, reliable, and high-quality

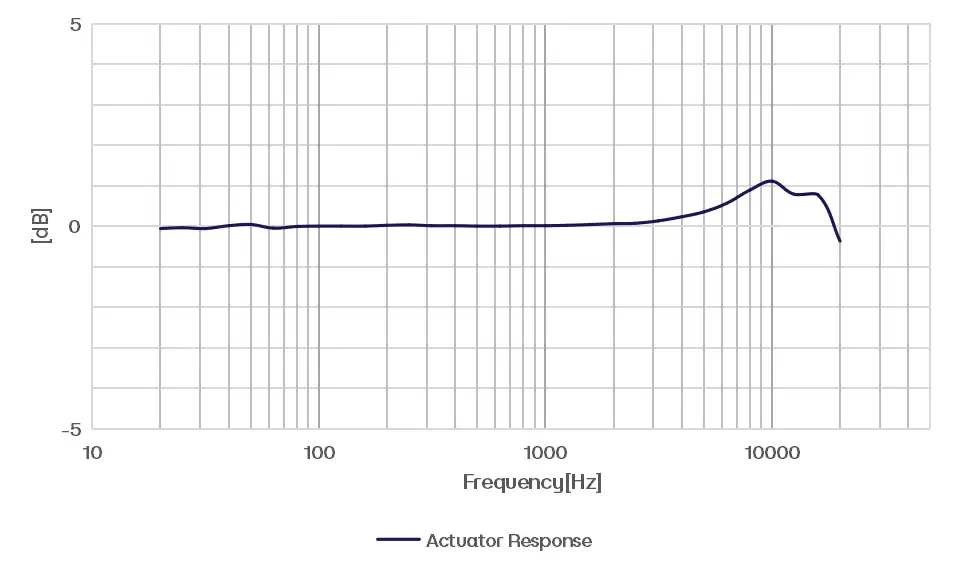

CRY3202-S01 Measurement Microphone Set Typical Frequency Response
The graph (right) shows the frequency response curves obtained using the electrostatic excitation method.
Technical Specifications
Technical specification
Field Type
Pressure-field
Noominal Sensitivity
12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response
3.15Hz to 20kHz±2dB
Polarization Voltage
0V
Dynamic Range(re.20uPa)
23 dBA to 150 dBA
Operating Temperature
-30 to +70℃ (-22 to +158℉)
Temperature Stability
0.005dB/℃(-10 to +50℃) 0.003dB/℉(+14 to +122℉)
Static Pressure Stability
-0.01dB/kPa
Pressure Equalization Vent
Rear vented
IEC 61094-4 Type
WS2P
Output Impedance
< 50Ω
Maximum Output Voltage
> 10.0Vp
Current Source
IEPE (2mA to 20mA)
Typical Operating Current
4mA
Interface Type
BNC
Height with Grid
88mm (3.46″)
Diameter with Grid
13.2mm (0.52″)
