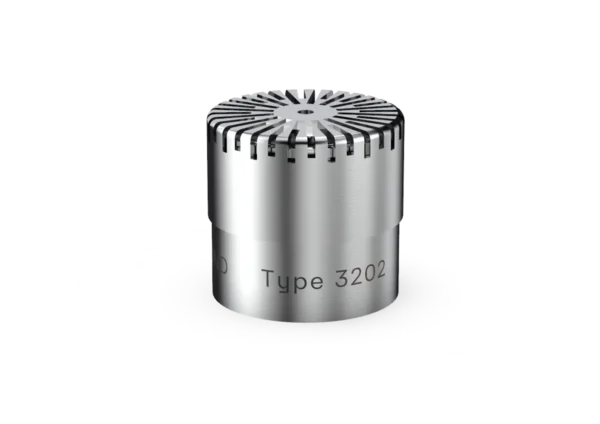

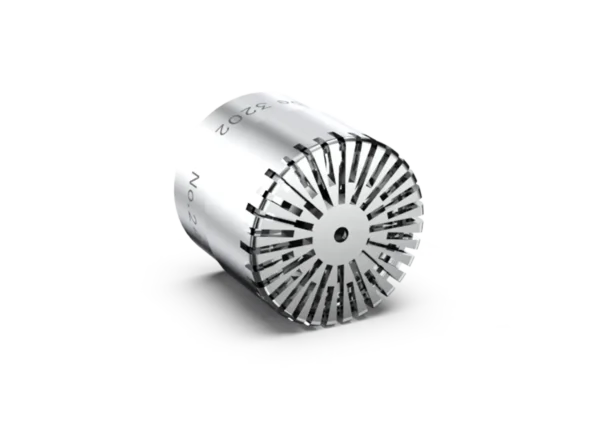

CRY3202 Pressure-field Microphone, 1/2″, Prepolarized, 12.5mV/Pa
The CRY3202 is a 1/2-inch pressure-field prepolarized measurement microphone designed to be used in conjunction with a coupler chamber for conducting relevant electroacoustic testing.
The unique design of the CRY3202 allows for high-quality, wideband testing of in-ear monitors and earbuds. Its frequency range extends up to 20kHz, surpassing the testing capabilities of most simulated ears.
Full-range pressure-field Microphone
Extensive compatibility
Durable, reliable, and high-quality

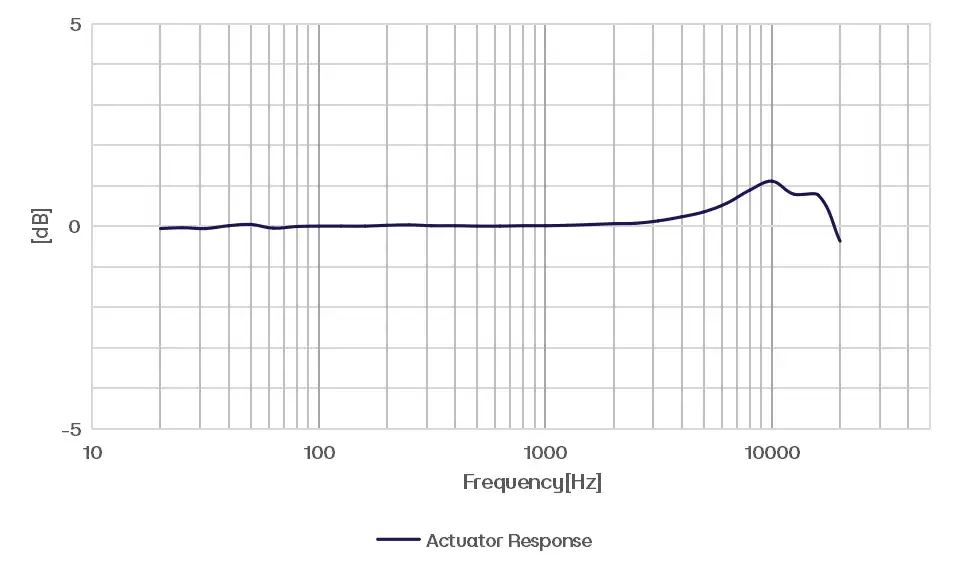

CRY3202 Measurement Microphone Typical Frequency Response
The graph (right) shows the frequency response curves obtained using the electrostatic excitation method.
Technical Specifications
Technical specification
Field Type
Pressure-field
Noominal Sensitivity
12.5mV/Pa, -38±1.5dB re 1V/Pa
Frequency Response
3.15Hz to 20kHz±2dB
Polarization Voltage
0V
Dynamic Range(re.20uPa)
23dBA to 160dB
Operating Temperature
-30 to +80℃ (-22 to +176℉)
Temperature Stability
0.005dB/℃(-10 to +50℃) 0.003dB/℉(+14 to +122℉)
Static Pressure Stability
-0.01dB/kPa
Operating Humidity Range
0 to 90%RH no condensation
Humidity Stability
< 0.1dB (0 to 90%RH no condensation)
Pressure Equalization Vent
Rear vented
IEC 61094-4 Type
WS2P
Height with Grid
12.7mm (0.500″)
Diameter with Grid
13.2mm (0.520″)
