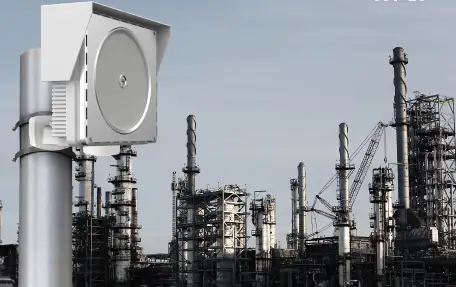

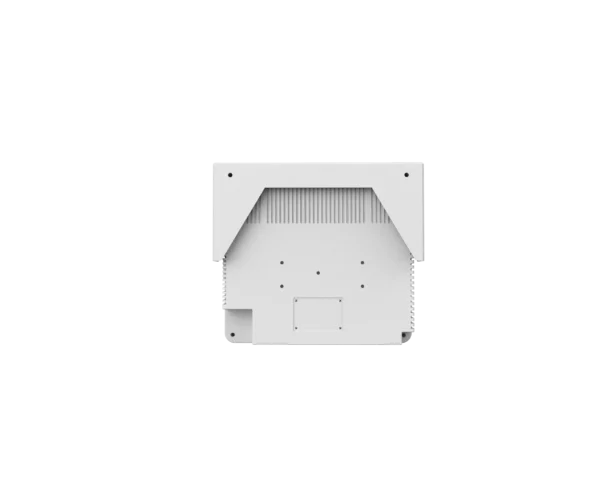

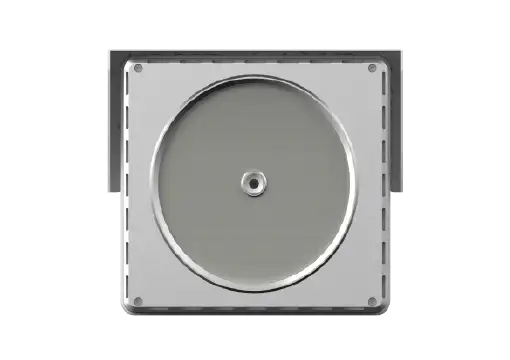

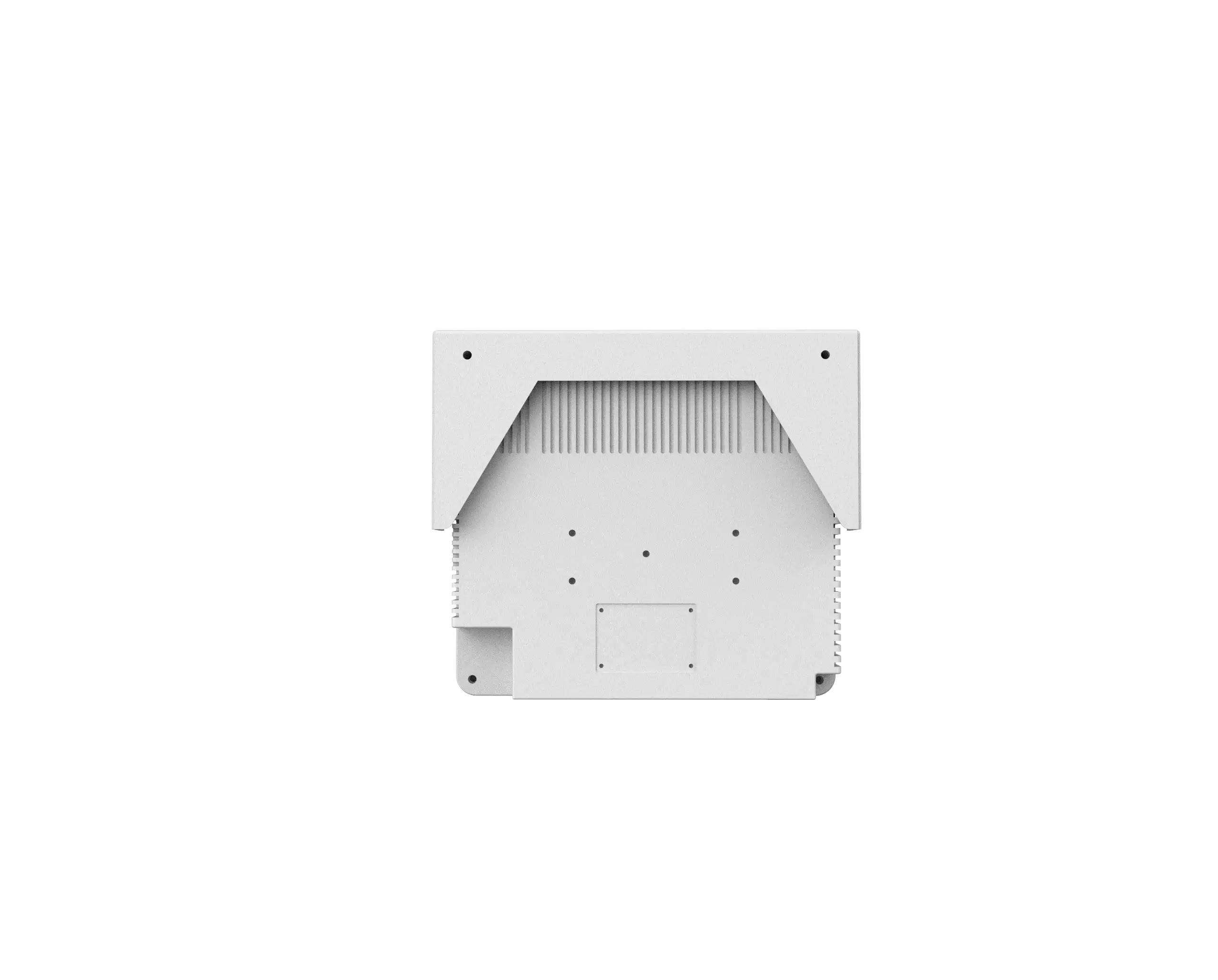

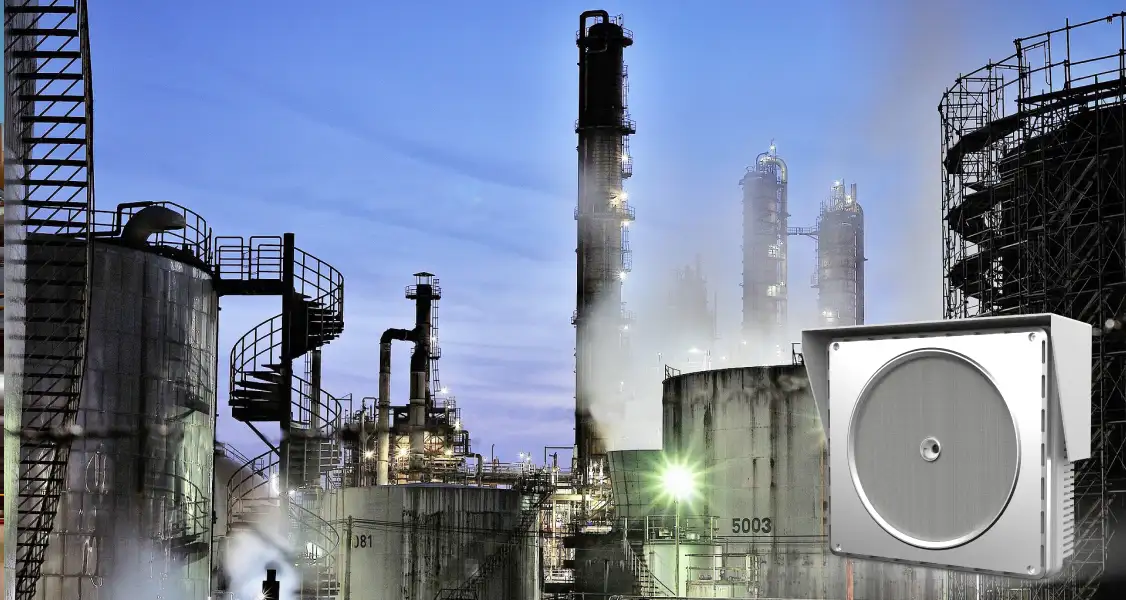

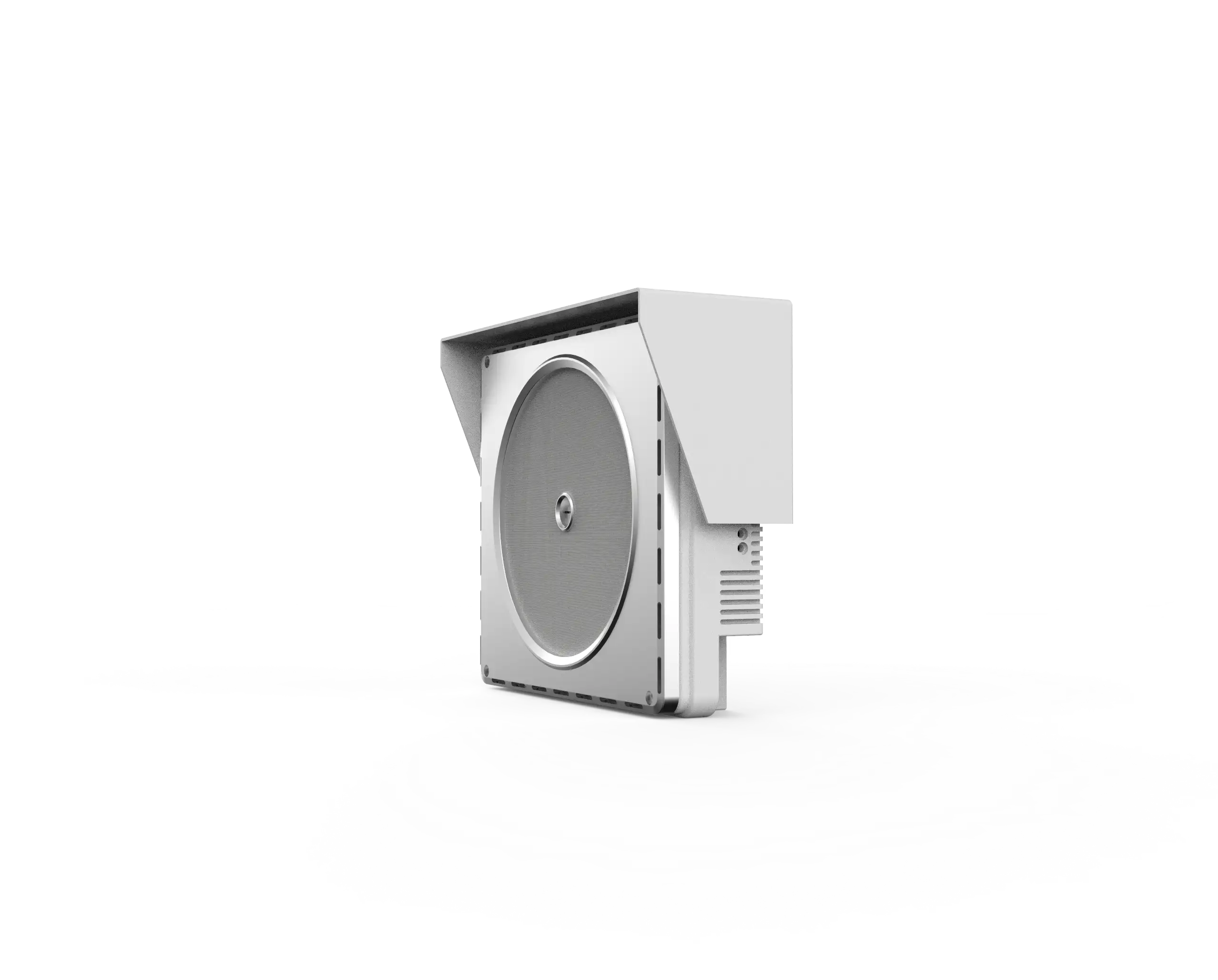

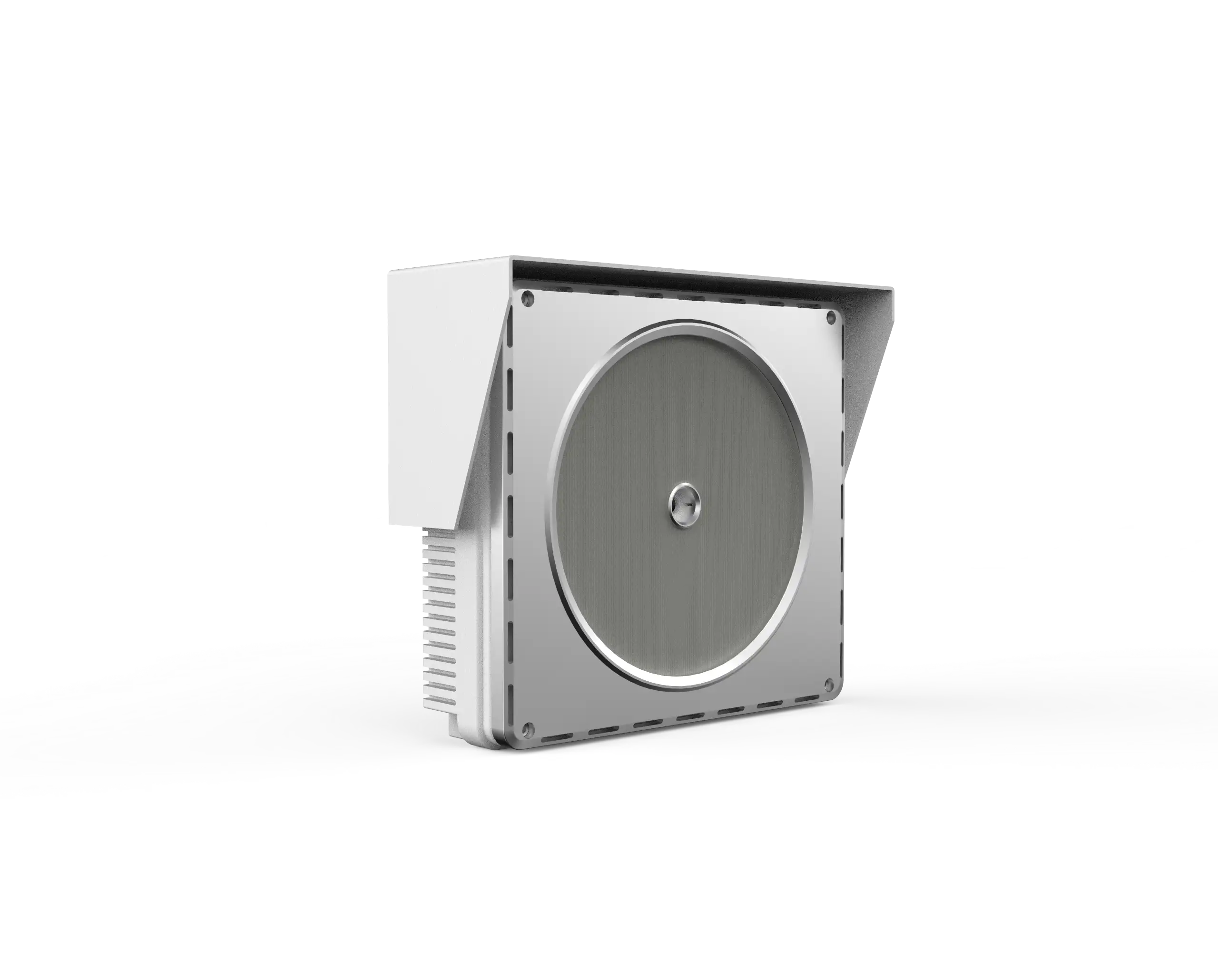

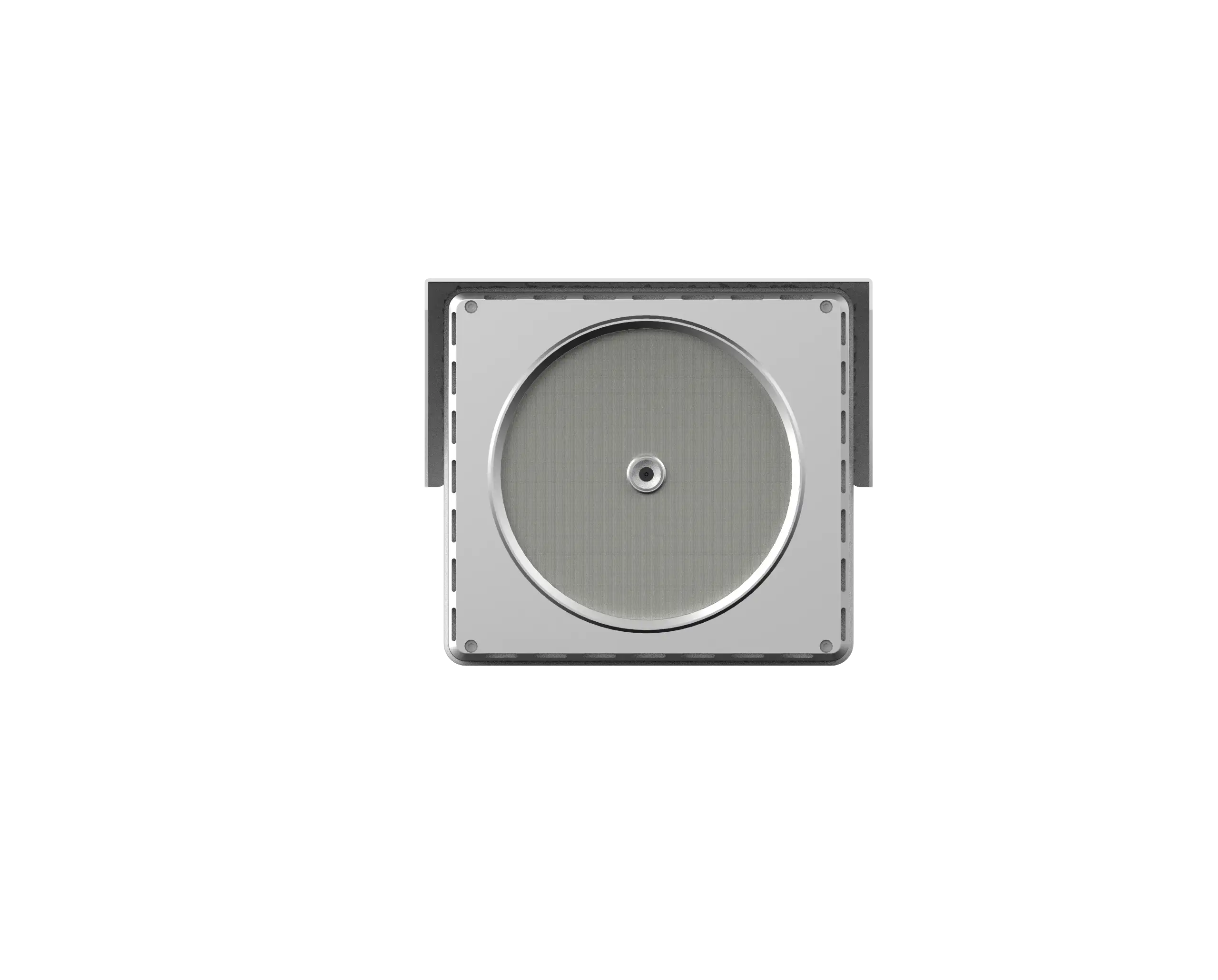

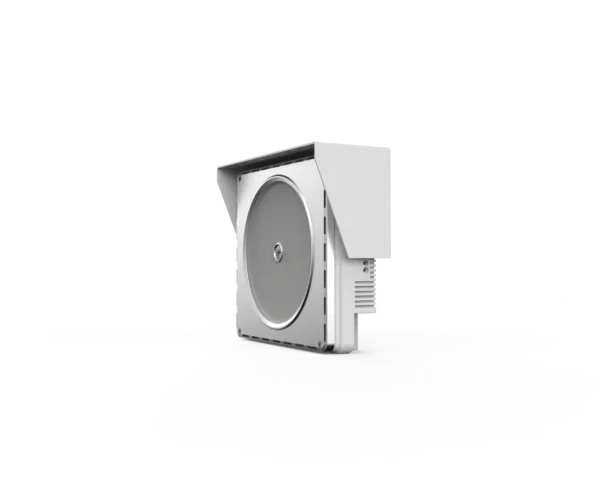

CRY2623M Fixed Acoustic Imaging Camera
The CRY2623M Fixed Acoustic Imaging Camera utilizes advanced microphone array beamforming technology to map sound source distribution and integrates with high-definition cameras for real-time video capture.
This system supports remote monitoring via local networks (LAN, WiFi) and wide area networks (WAN, ADSL, 4G, and private networks), facilitating industrial digital transformation. It enables real-time video monitoring and provides valuable insights into product quality and safety, allowing for the rapid detection of issues in compressors, pumps, pipes, cables, and more. With an IP66 protection rating, the CRY2623M is built to perform reliably in various harsh environments.
Gas leak monitoring for critical assets
PD monitoring & PD type recognition
IP66 rating
Real-time fault alarm triggering
24/7 Real-Time Monitoring
The CRY2623M offers continuous, round-the-clock real-time monitoring, which is essential for industries that require constant surveillance of acoustic data and anomalies, such as manufacturing plants, energy facilities, and critical infrastructure. Utilizing advanced sensor technology, the device persistently detects and captures acoustic signals, delivering immediate insights into equipment performance and operational conditions. This ongoing monitoring allows for the early identification of potential issues, reducing downtime and boosting overall efficiency. Its robust design ensures reliability and accuracy over extended periods, making it a vital tool for proactive maintenance and ensuring uninterrupted operations.
Gas/Vacuum Leak Detection
The camera excels in gas leak detection, offering pinpoint accuracy in locating leaks. By leveraging advanced acoustic technology, it detects the ultrasound emitted by escaping gases, accurately identifying the precise source of the leak. This high level of precision reduces inspection time and enhances safety by minimizing the need for manual checks. Capable of operating effectively in challenging industrial environments, the imager captures and analyzes real-time acoustic data to ensure immediate detection and response, significantly mitigating the risk of potential hazards.
Locates 53 CCM leak from a 10m distance
No restrictions on gas types for detection
PD Localization & PD Type Recognition
Providing advanced capabilities for partial discharge (PD) localization and type recognition, the CRY2623M is essential for evaluating the integrity of electrical insulation in high-voltage equipment. Its high spatial resolution allows for precise pinpointing of PD sources within the equipment. In addition to localization, the camera can classify various PD types, including surface discharge, suspension discharge, and corona discharge. By accurately identifying these types, the device enables maintenance teams to prioritize repairs and preventive measures, significantly enhancing both reliability and safety.
Integration with Robotic Dogs & Wheeled Robots
Integrating the CRY2623M with robotic dogs and wheeled robots significantly amplifies monitoring and surveillance capabilities across diverse environments. This synergy leverages the camera’s continuous acoustic signal detection to provide real-time insights into environmental conditions and potential anomalies. Robotic dogs equipped with the device can autonomously navigate challenging or hazardous terrains, conducting patrols to detect sound sources and abnormalities that might be difficult or unsafe for human operators to access.
Powerful, Web-Based Software Platform
The web-based software platform is engineered to offer robust monitoring and analysis capabilities, facilitating efficient data management and insightful diagnostics. It enables continuous data collection, secure storage, and real-time analysis of acoustic signals. Users benefit from detailed reports, trend analyses, and access to historical data, which support proactive maintenance and informed decision-making.
Additionally, the platform accommodates secondary development, allowing for customization and seamless integration with existing systems.
IP66 Rating
The CRY2623M’s IP66 rating demonstrates its superior dust and water resistance, making it ideal for harsh industrial environments. This rating guarantees that the device withstands both fine dust and powerful water jets, ensuring reliable performance in factories, outdoor settings, and other demanding locations over extended periods.
With its high protection level, the CRY2623M continuously monitors acoustic signals and detects anomalies, providing consistent data for industrial inspections, safety monitoring, and equipment maintenance. Its robust design and exceptional protection rating ensure durability and dependability in various outdoor conditions, making it a trusted solution for managing and operating critical facilities.
Technical Specifications
Main Technical Specifications
Number of Microphone Channels
128 channels
Test Frequency Range
2kHz ~ 48kHz
Port
RJ45
Data communication
RTSP/RTMP streaming transmission
Camera pixel
8 million pixel
Frame Rate
25FPS
Test Distance
0.5~50m
Weight
About 1.6kg
Size
183mm X 169mm X 85.35mm
Storage
8G internal storage, 64G TF card expansion storage
Operating Temperature
-10℃~+50℃
Supply Voltage
DC12-20V
Power Consumption
About 14W
IP Degree of Protection
IP66
Fixed way
Bottom 1/4 -20UNC thread/M5 screw fixing
Intrinsically Safe Power Supply
Intrinsically safe maximum open circuit voltage
DC 6.5V
Intrinsically safe maximum output current
2.0A
