Loudspeaker Test System

Electroacoustic Test

Effectiveness and stability

Supports access to MES systems

Multiple reliable noise testing algorithms

Overview

A smart loudspeaker is a voice-activated smart home device that connects to the Internet, enabling various operations such as playing music, providing weather updates, and answering questions through voice recognition.To ensure the quality and performance of smart loudspeakers, CRYSOUND has developed a measurement solution.

Features

Compatibility

‍The solution supports both audio and RF test of finished and semi-finished products,and supports WiFi, Bluetooth and USB communication as well.

Cost-effcetive

‍It is definitely ideal for streamlining the manufacturing process and reducing costs, offering an efficient and cost-effective solution for comprehensive testing and evaluation of smart loudspeakers.

Test Items

SPK Test

Frequency response

Sensitivity

Total harmonic distortion

MIC Test

Frequency response

Sensitivity

Total harmonic distortion

Air-tightness

System Devices

Edit Content

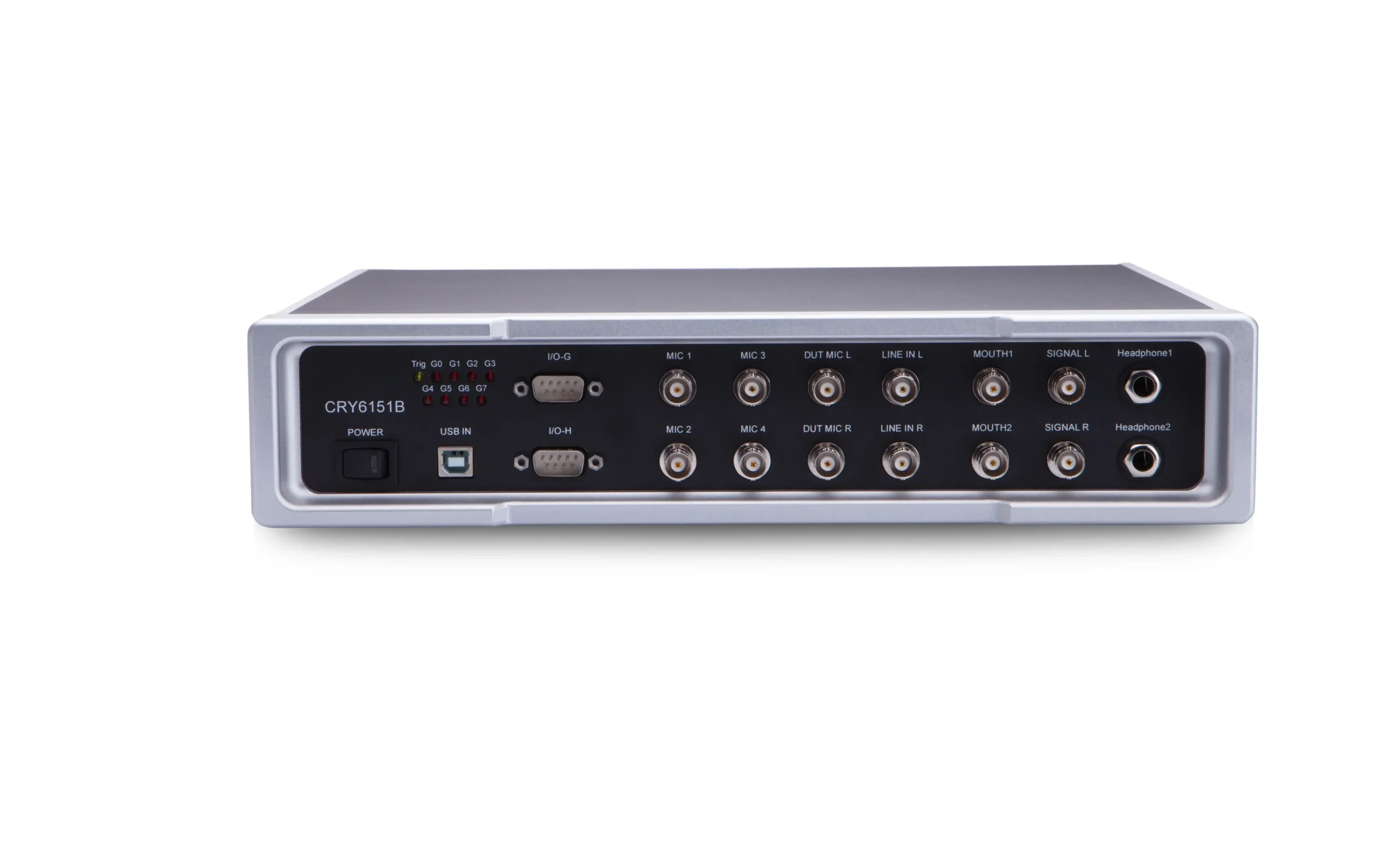

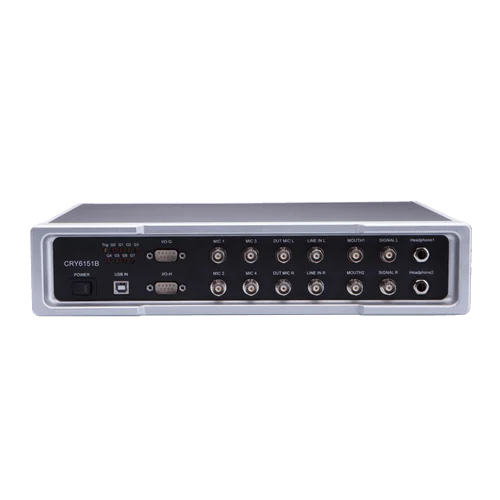

CRY6151B Electroacoustic Analyzer

CRY6151B is a robust and reliable electroacoustic analyzer with a frequency range spanning from 20Hz to 20kHz. It is designed to evaluate a diverse array of devices, including USB, Bluetooth®, and noise-canceling headphones; electret, MEMS, and moving-coil microphones; receivers; speakers; Bluetooth loudspeakers; and loudspeaker crossover devices.

Technicians can assess device performance using key metrics and procedures such as sensitivity (SPL), impedance, total harmonic distortion (THD), resonance frequency (F0), headphone balance, headphone positioning, phase, polarity, microphone current and voltage, signal-to-noise ratio (SNR), microphone directivity, speaker Thiele/Small (TS) parameters, and telephone loudness ratings. The CRY6151B offers comprehensive capabilities for thorough and precise evaluation of electroacoustic equipment.

Edit Content

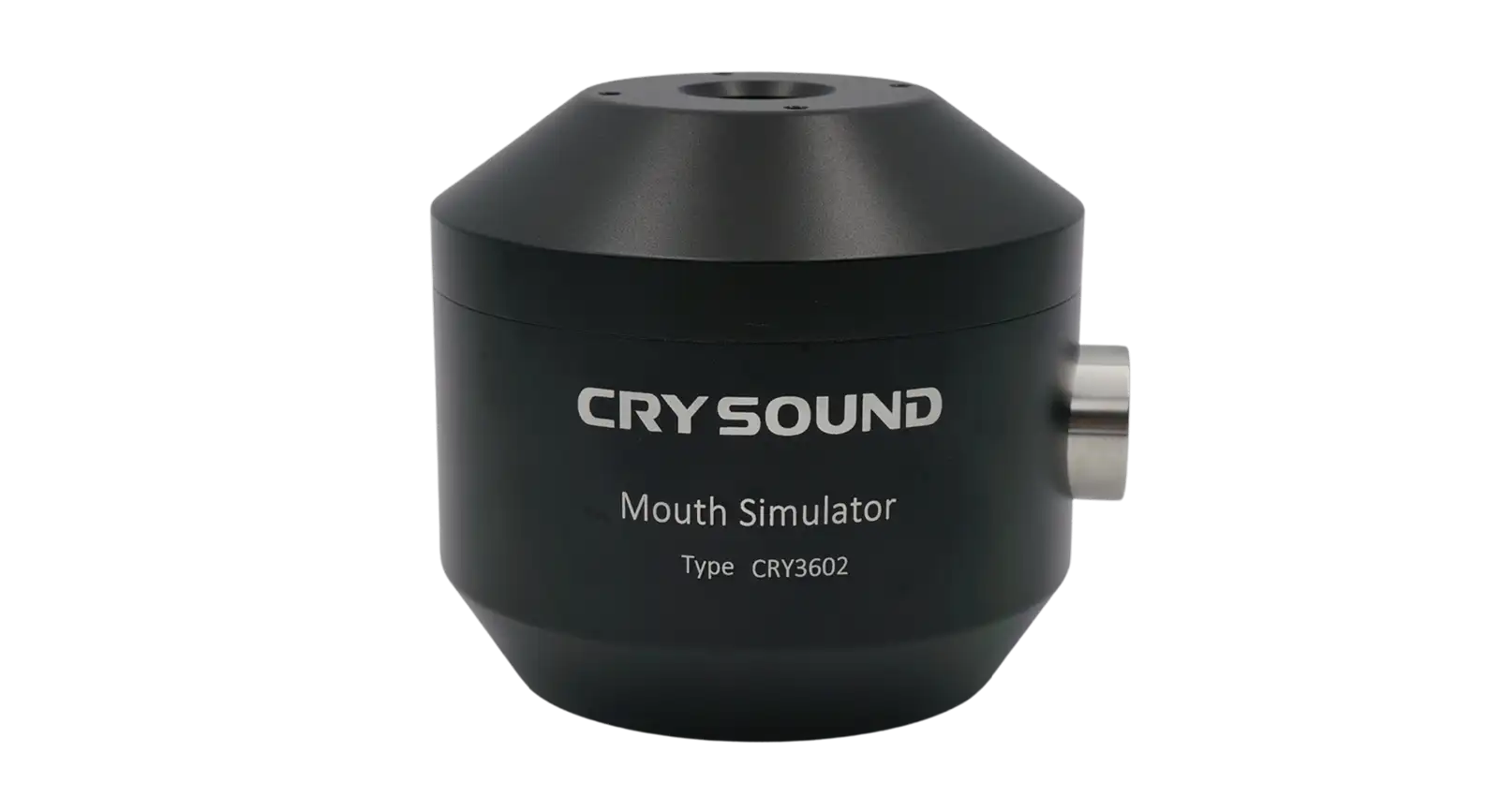

CRY3602 Mouth Simulator with Built-In 20dB Amplifier

CRY3602 mouth simulator is a sound source used to simulate the sound field near the human mouth. It is widely used for testing acoustic parameters such as the frequency response and distortion of telephone transmitters and microphones.

‍CRY3602 mouth simulator has a built-in power amplifier. There is no need to purchase an additional power amplifier. It can be directly connected to a sound card or signal generator, simplifying the connection of the test system.

Edit Content

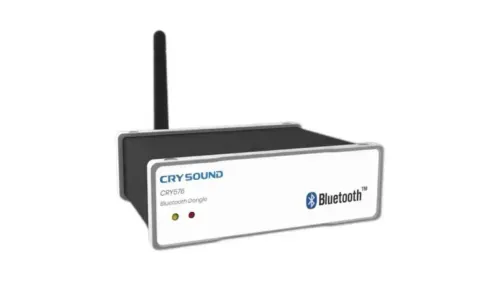

CRY576 Bluetooth® Dongle

CRY576 Bluetooth® Dongle is a Bluetooth device designed for Bluetooth audio and UI testing. The CRY576 is engineered for use in R&D laboratories and production lines. It is versatile, functioning seamlessly both with the CRY6151B electroacoustic tester and as a stand-alone module with other testing equipment. The CRY576 supports a range of Bluetooth solutions with high reliability and fast test speeds, connecting to most solutions in under 3 seconds. Users can operate the CRY576 via CRY6151B test software or its own stand-alone tool software to perform functions such as searching, pairing, connecting, playing audio, and recording.

Edit Content

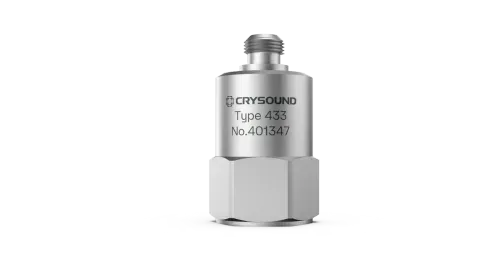

CRY433 Accelerometer, 1 Axis, 100mv/g, ±50g pk, 0.5Hz to 8kHz

The CRY433 is a single-axis acceleration sensor designed for precision and versatility. It features a 10-32 UNF output mode on the top, allowing it to be securely mounted to objects using a 10-32 UNF bolt. This sensor is ideal for detecting small movements in laboratory and scientific research, as well as for real-time vibration monitoring of industrial equipment.

‍The CRY433 can be fitted with armored shielded cables, enabling accurate measurement of vibration parameters such as acceleration, velocity, and displacement, even in environments with significant industrial or electrical interference

Edit Content

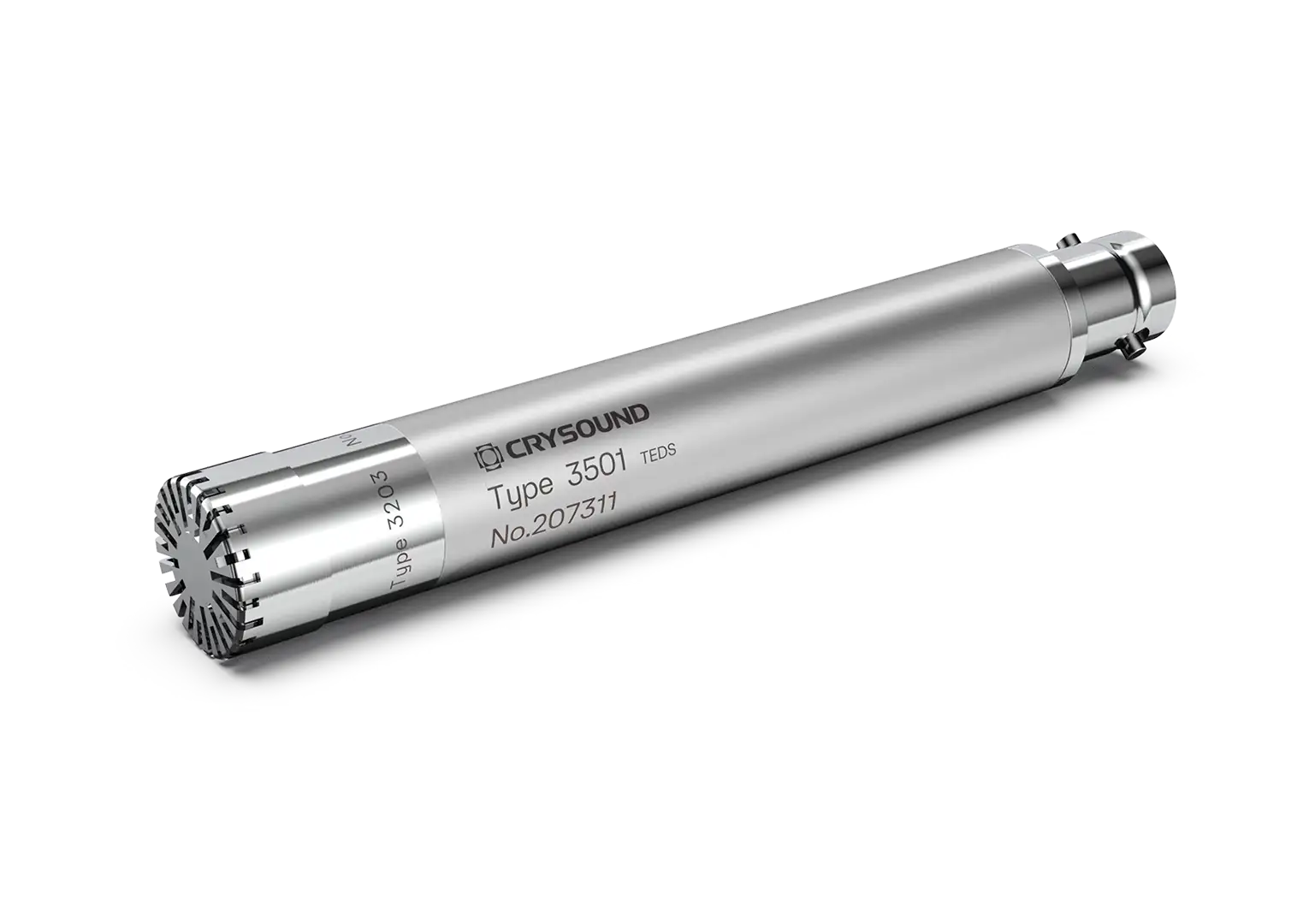

CRY3203-S01 Free-Field Microphone Set, 1/2", 50mV/Pa

CRY3203-S01 is a 1/2-inch free-field prepolarized measurement microphone and preamplifier set widely used in acoustic testing environments, such as anechoic chambers and quiet rooms.

‍The unique design of CRY3203-S01 allows it to have a frequency response range that matches the auditory frequency range of the human ear, making it highly suitable for noise detection. Additionally, it is also widely applicable in various fields including electroacoustic measurements, audio measurements, and acoustical research.

Edit Content

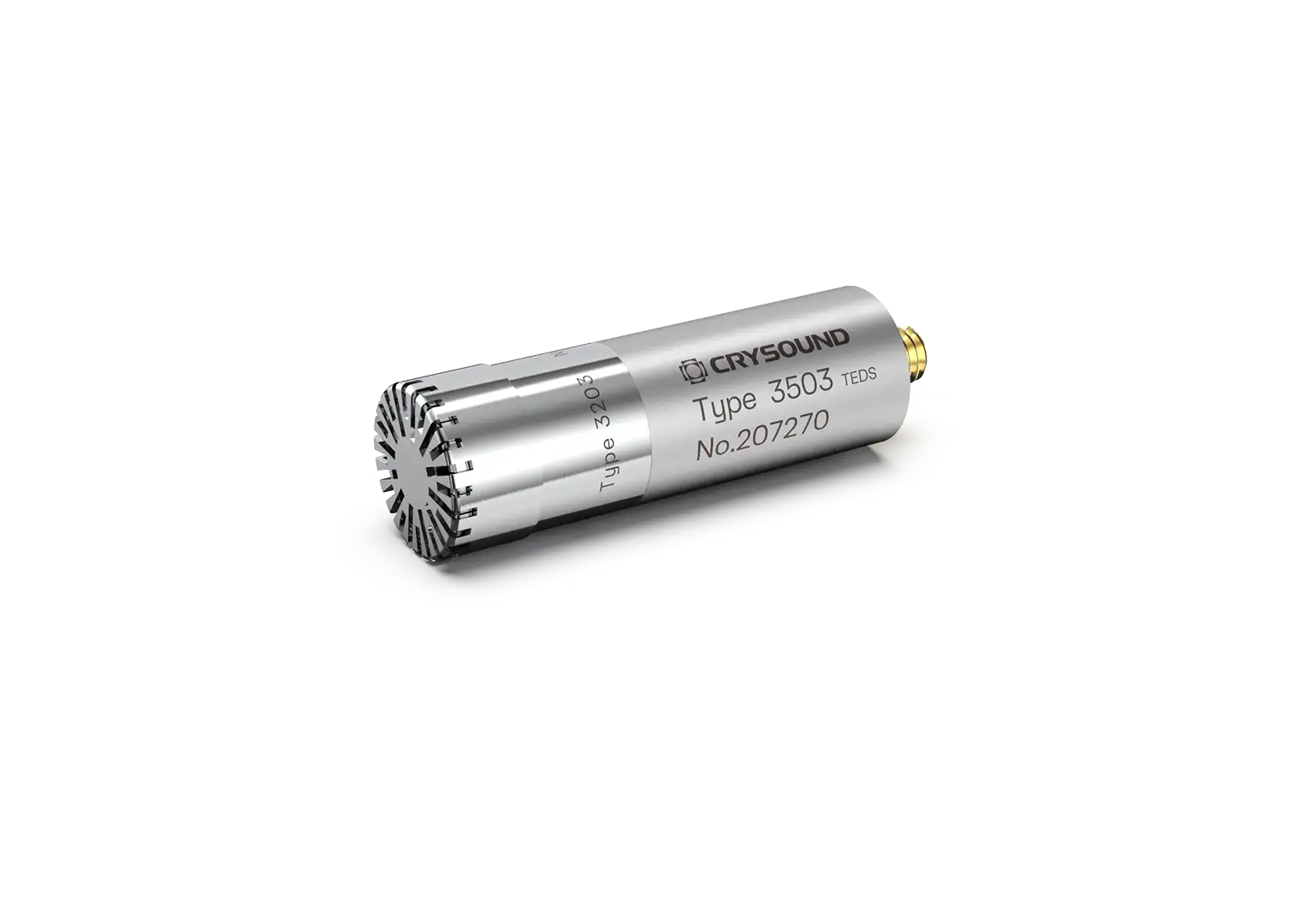

CRY3203-S02 Free-Field Microphone Set, 1/2", 50mV/Pa

CRY3203-S02 is a 1/2-inch free-field prepolarized measurement microphone and preamplifier set widely used in acoustic testing environments, such as anechoic chambers and quiet rooms.

‍The unique design of CRY3203-S02 allows it to have a frequency response range that matches the auditory frequency range of the human ear, making it highly suitable for noise detection. Additionally, it is also widely applicable in various fields including electroacoustic measurements, audio measurements, and acoustical research.

Edit Content

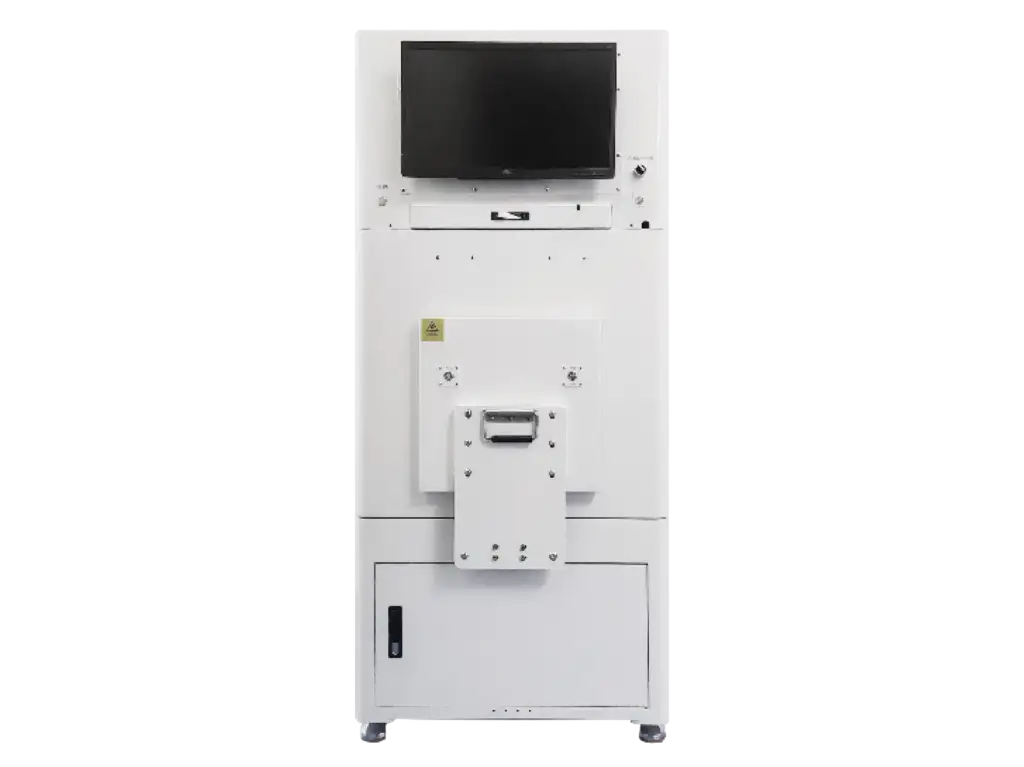

CRY725 Pneumatic Acoustic Test Chamber

CRY725 Acoustic Test Chamber is mainly used to test power, sensitivity and other electrical performance of large-scale wireless electronics and communication products, such as wireless servers, laptop and walkie-talkies, etc.

The box can be used with comprehensive tester, vector network analyzer, signal source, channel emulator to carry out the necessary test items. It is able to connect to the wireless devices with Bluetooth, WiFi, GSM, WCDMA, RFID or GPS remote controller.
