Laptop Audio Test System

Electroacoustic Test

Meets various needs of notebook audio test

Easy to use and stable system

Overview

Laptop is one important part of high-end consumer electronics. However, the inherent audio problem of product emerges, for example, speaker does not sound or sounds very low, or microphone does not work.

Therefore, CRYSOUND provides an audio test system solution to measure audio characteristics of laptop.

Features

Automation

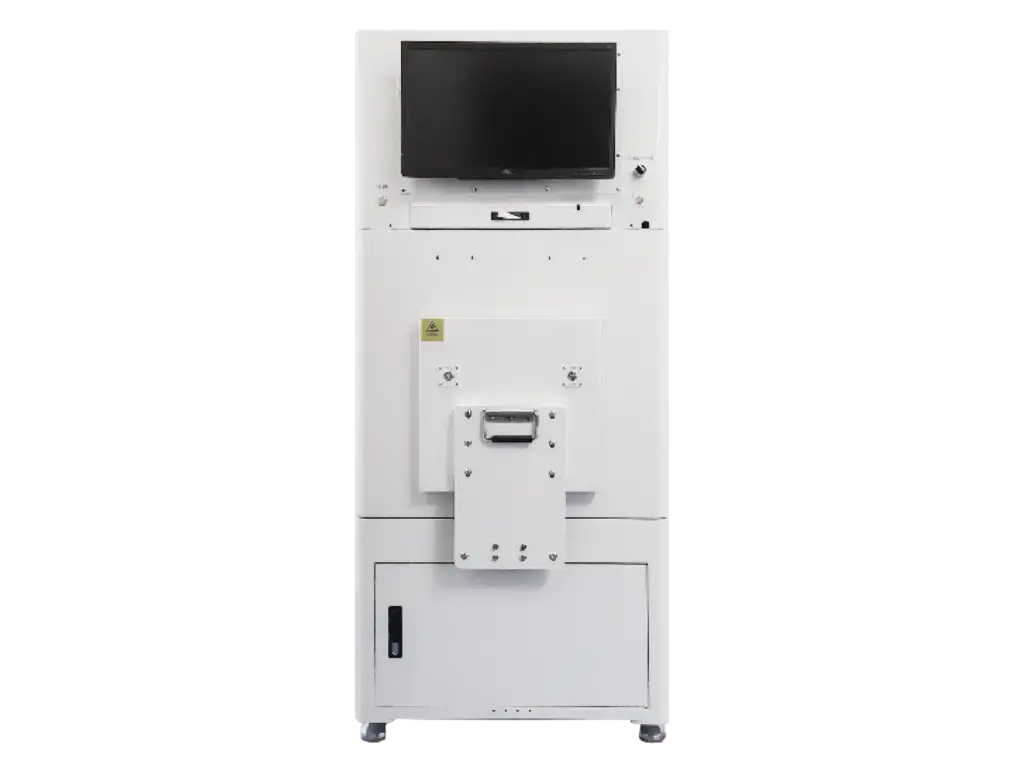

‍The solution includes highly automated testing fixtures and enclosures, which can conveniently, quickly, and stably test the audio characteristics of laptops.

Customization

‍Our system can meet the diverse testing needs of laptop audio testing and tailor testing processes for customers.

Explore More Use Cases

Test Items

SPK Test

Frequency response

Total harmonic distortion

High harmonic

MIC Test

Frequency response

Total harmonic distortion

Sensitivity

Audio Test

Frequency response

Sensitivity

Balance

Position of L/R headphone

Total harmonic distortion

System Devices

Edit Content

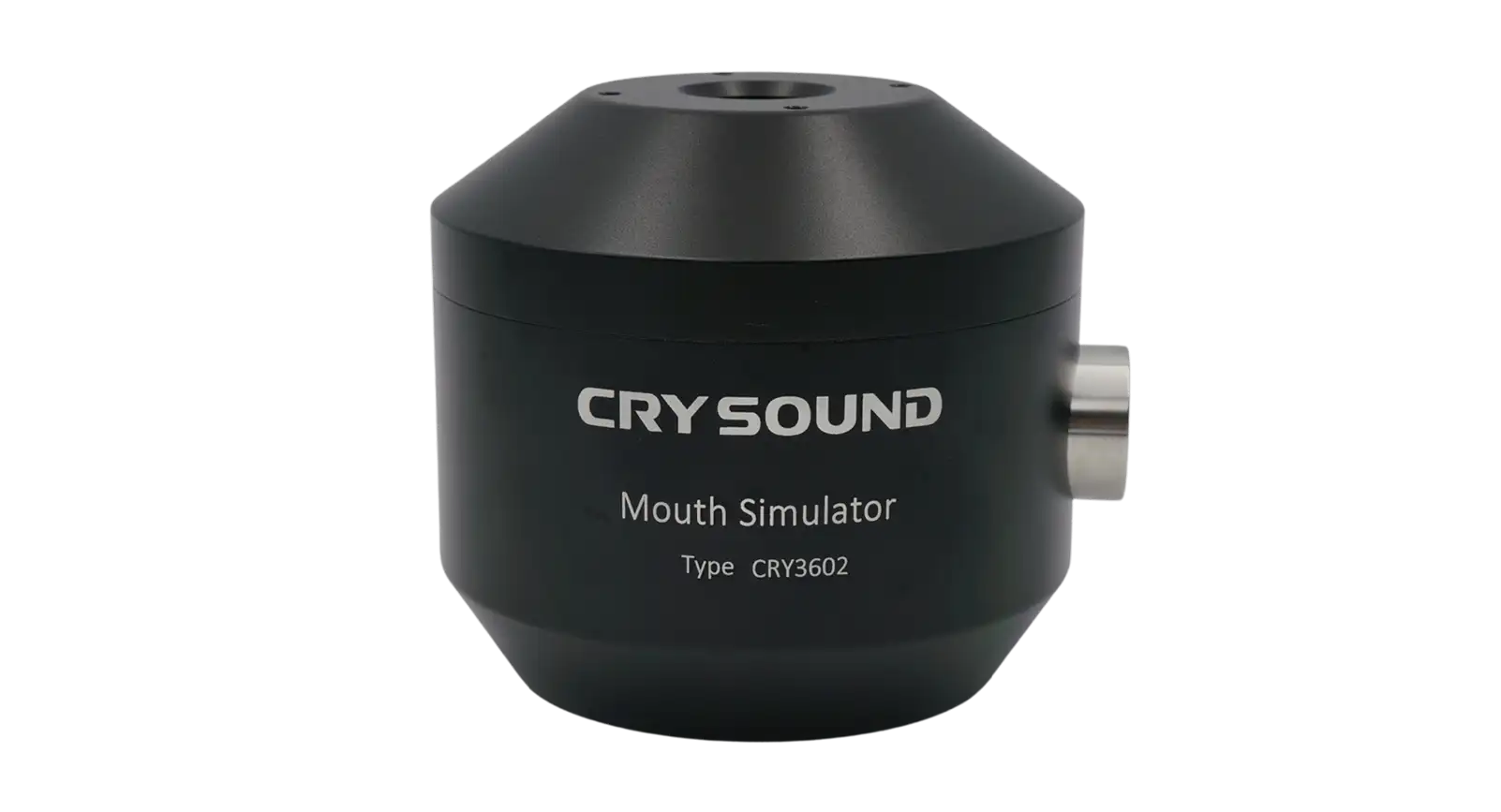

CRY3602 Mouth Simulator with Built-In 20dB Amplifier

CRY3602 mouth simulator is a sound source used to simulate the sound field near the human mouth. It is widely used for testing acoustic parameters such as the frequency response and distortion of telephone transmitters and microphones.

‍CRY3602 mouth simulator has a built-in power amplifier. There is no need to purchase an additional power amplifier. It can be directly connected to a sound card or signal generator, simplifying the connection of the test system.

Edit Content

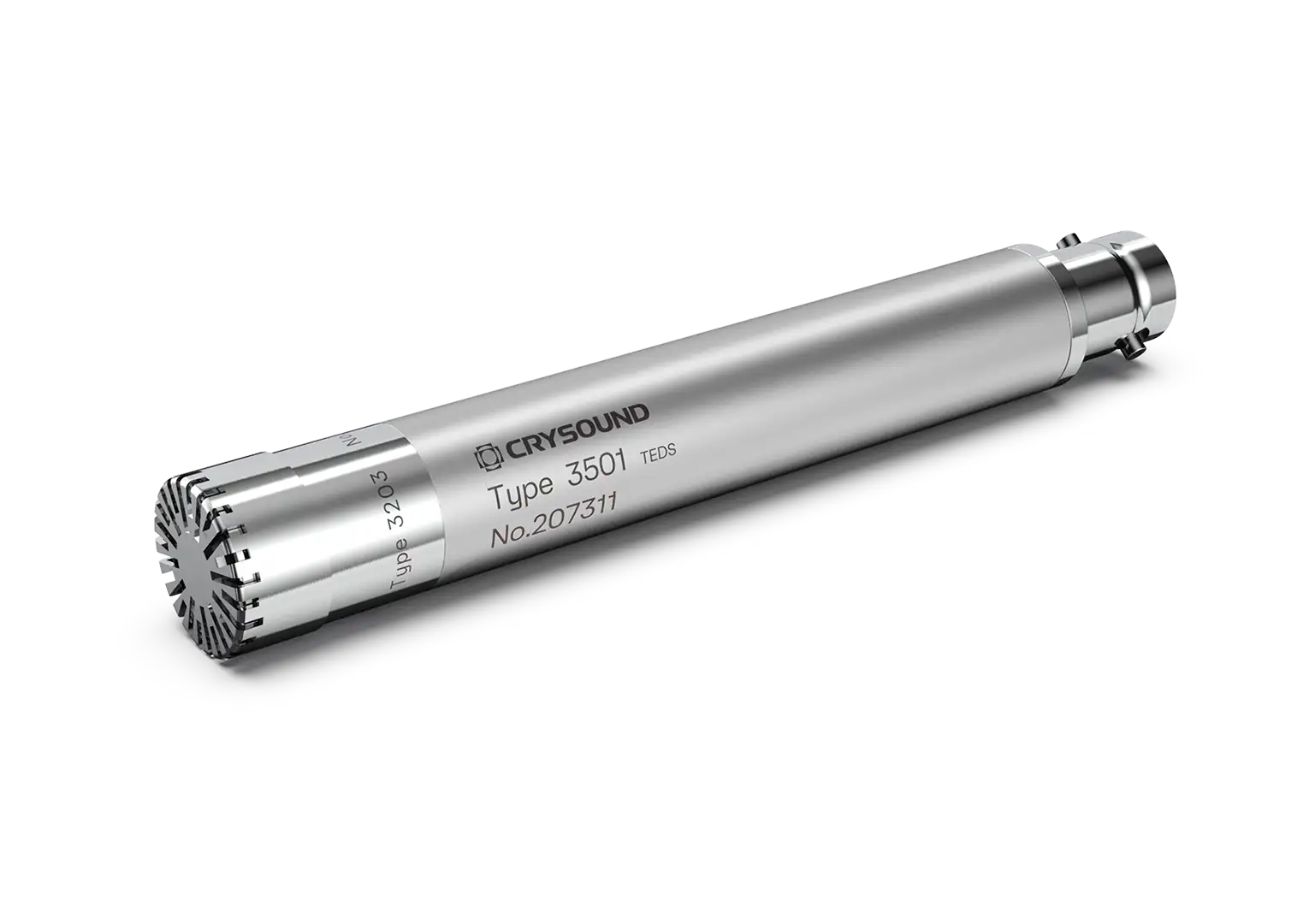

CRY3203-S01 Free-Field Microphone Set, 1/2", 50mV/Pa

CRY3203-S01 is a 1/2-inch free-field prepolarized measurement microphone and preamplifier set widely used in acoustic testing environments, such as anechoic chambers and quiet rooms.

‍The unique design of CRY3203-S01 allows it to have a frequency response range that matches the auditory frequency range of the human ear, making it highly suitable for noise detection. Additionally, it is also widely applicable in various fields including electroacoustic measurements, audio measurements, and acoustical research.

Edit Content

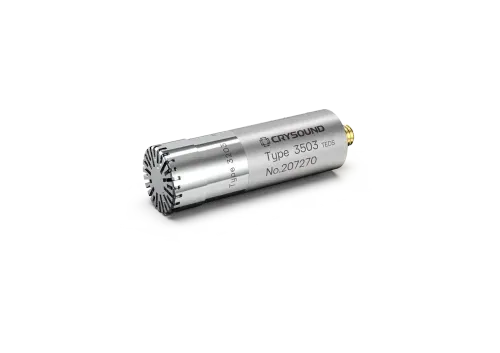

CRY3203-S02 Free-Field Microphone Set, 1/2", 50mV/Pa

CRY3203-S02 is a 1/2-inch free-field prepolarized measurement microphone and preamplifier set widely used in acoustic testing environments, such as anechoic chambers and quiet rooms.

‍The unique design of CRY3203-S02 allows it to have a frequency response range that matches the auditory frequency range of the human ear, making it highly suitable for noise detection. Additionally, it is also widely applicable in various fields including electroacoustic measurements, audio measurements, and acoustical research.

Edit Content

CRY6151B Electroacoustic Analyzer

CRY6151B is a robust and reliable electroacoustic analyzer with a frequency range spanning from 20Hz to 20kHz. It is designed to evaluate a diverse array of devices, including USB, Bluetooth®, and noise-canceling headphones; electret, MEMS, and moving-coil microphones; receivers; speakers; Bluetooth loudspeakers; and loudspeaker crossover devices.

Technicians can assess device performance using key metrics and procedures such as sensitivity (SPL), impedance, total harmonic distortion (THD), resonance frequency (F0), headphone balance, headphone positioning, phase, polarity, microphone current and voltage, signal-to-noise ratio (SNR), microphone directivity, speaker Thiele/Small (TS) parameters, and telephone loudness ratings. The CRY6151B offers comprehensive capabilities for thorough and precise evaluation of electroacoustic equipment.

Edit Content

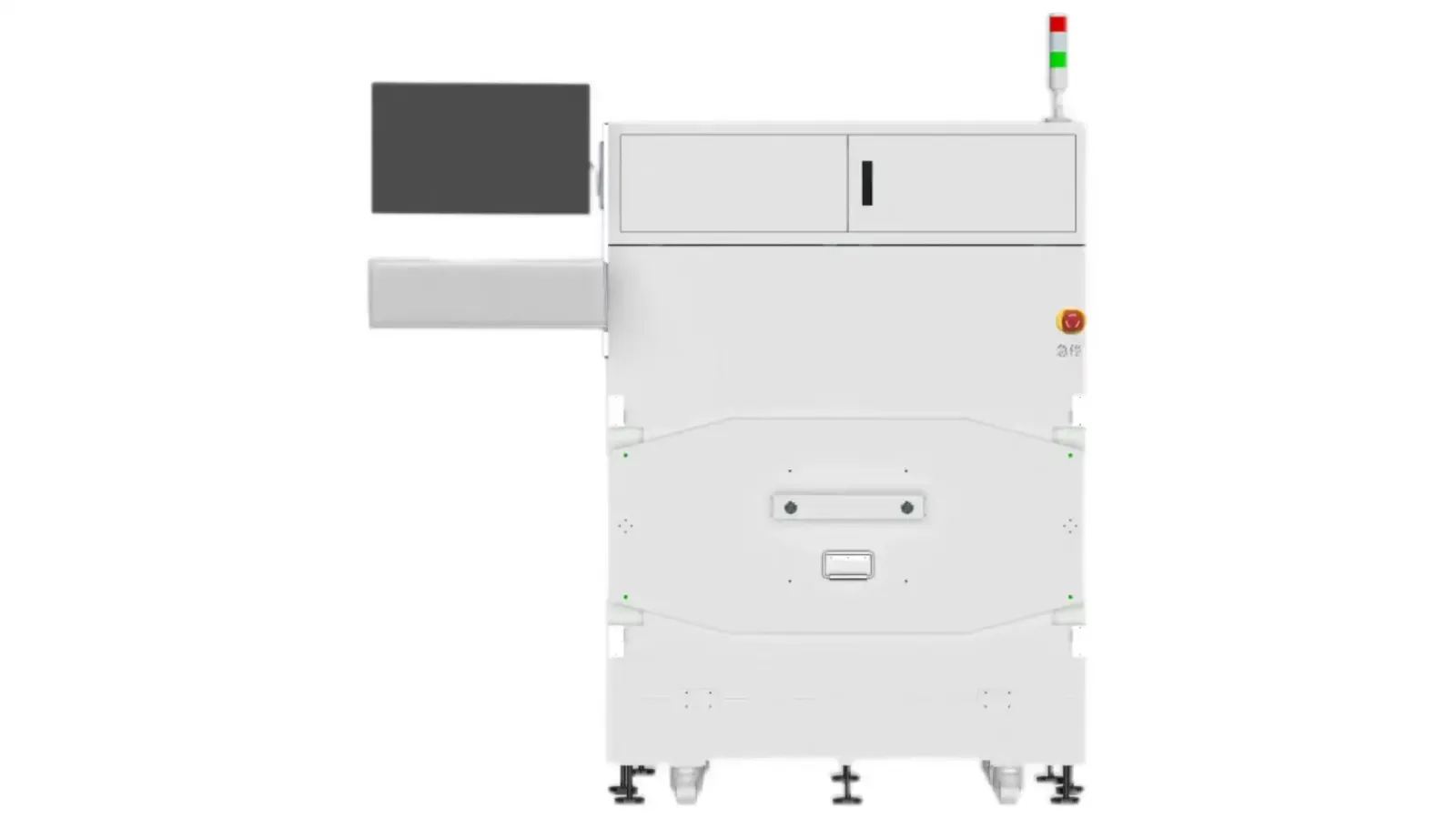

CRY7865 Pneumatic Acoustic Test Chamber

The CRY7865 is a high-performance, drawer-style soundproof test chamber designed for minimal noise and radio frequency interference. It is ideal for audio and noise measurements of wireless electronic devices, both on production lines and in laboratories.

‍When used in conjunction with electroacoustic and radio communication testers, the CRY7865 is well-suited for evaluating Bluetooth® headphones, Bluetooth® speakers, laptops, and more. Its drawer-style design facilitates integration into automated production lines, streamlining testing processes and enhancing efficiency.
